27000 BTU 2 Zone 24 SEER2 Mini Split AC With Heat Pump, 9K + 12K, White

Enjoy year-round comfort with this 27000 BTU mini split air conditioner, featuring 2-zone climate control for efficient heating and cooling in larger homes. Its advanced inverter technology and R454B refrigerant deliver high energy efficiency up to 24 SEER2, while smart controls via app, remote, or voice commands offer flexible operation. With quiet performance as low as 30 dB and easy maintenance features, it ensures reliable performance in harsh weather conditions from -25°C to 55°C.

Overview:

• Provides all-season comfort with fast cooling and heating for two independent zones.
• Ideal for larger homes, offering room-by-room temperature control for optimal comfort.
• Features advanced inverter technology and R454B refrigerant for energy-efficient operation.
• Includes smart controls via smartphone app, remote, or voice commands for convenience.
• Designed for harsh weather with chassis electrical heating for consistent performance.
• Note: Professional installation is recommended for optimal safety and performance.

Highlights:

• Fast cooling and heating for two independent zones with 7 operating modes and 8 fan speeds.
• High energy efficiency with inverter technology and R454B refrigerant, certified by Energy Star.
• Smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• Quiet operation as low as 30 dB with sleep mode and screen off function for peaceful nights.
• Self-clean function and removable, washable filter for easy maintenance and fresher airflow.
• 24-hour timer for energy-saving scheduling and child lock to prevent accidental setting changes.
• 4D swing ensures even air distribution for added comfort throughout the room.
• Chassis electrical heating ensures dependable performance in tough weather conditions.

Features:

• 2-zone climate control for room-by-room comfort in larger homes with independent temperature adjustment.
• 4D auto swing for even air distribution and optimal airflow coverage.
• Energy-efficient performance rated up to 24 SEER2 with R454B refrigerant for lower global warming potential.
• Advanced inverter technology minimizes energy waste and maintains steady set temperatures.
• WiFi-enabled for smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep for versatile use.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo for customized airflow.
• 24-hour timer for effortless scheduling and energy savings.
• Child lock to prevent accidental changes to settings for added safety.
• Sleep mode for peaceful nights alongside a screen off function to reduce distractions.
• Chassis electrical heating system ensures consistent performance in harsh weather, cooling up to 55°C and heating down to -25°C.
• Quiet operation with sound levels as low as 30 dB for a peaceful environment.
• Self-clean function maintains fresher airflow over time with minimal effort.
• Removable and washable filter for easy cleaning and improved air quality.
• Note: Installation by a professional technician is recommended for optimal performance and safety.

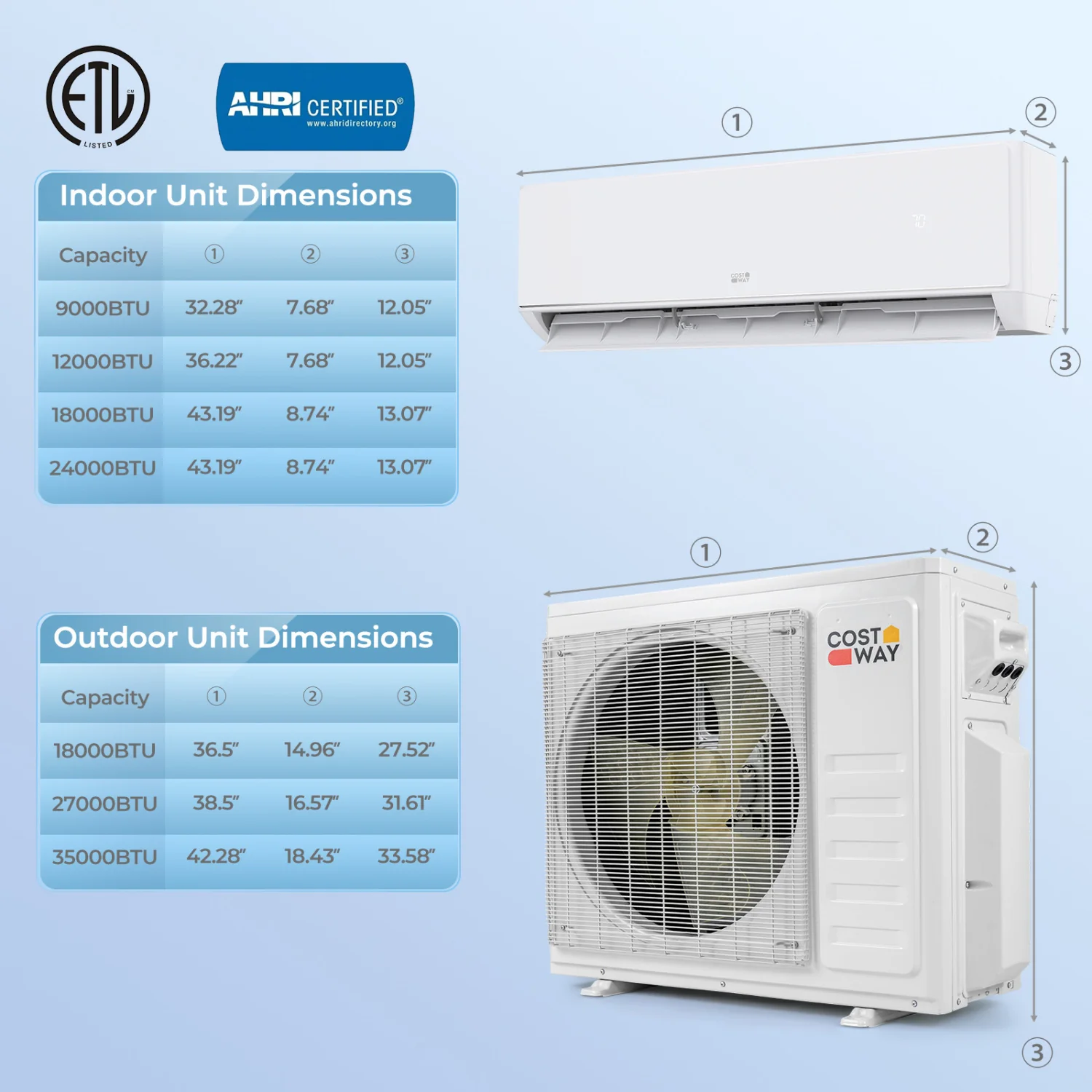

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 lbs (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 lbs (11 kg).
• Net Weight of Indoor Unit (18K): 30.9 lbs (14 kg).
• Net Weight of Indoor Unit (24K): 30.9 lbs (14 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White for a sleek, modern appearance.
• Material: Cold-rolled steel sheet, copper, and aluminum for durability and efficiency.
• Multi-zone combination: 2 zones for flexible climate control.
• Voltage: 208-230V for standard residential use.
• Frequency: 60Hz compatible with North American electrical systems.
• Temperature setting range: 16°C to 31°C (61°F to 88°F) for precise comfort control.
• Refrigerant: R454B for efficient heating and cooling with lower environmental impact.
• Indoor unit noise level: As low as 30 dB for quiet operation.
• Maximum remote control distance: 39.5 ft (12 m) for convenient adjustments.
• Coverage area (9K): 450 sq. ft (41.8 m²) for small to medium rooms.
• Coverage area (12K): 750 sq. ft (69.7 m²) for medium-sized spaces.
• Coverage area (18K): 1250 sq. ft (116.1 m²) for larger areas.
• Coverage area (24K): 1500 sq. ft (139.4 m²) for expansive rooms.
• Dehumidification capacity (9K): 55.8 pints per day for moisture control.
• Dehumidification capacity (12K): 81.2 pints per day for effective humidity reduction.
• Dehumidification capacity (18K): 111.6 pints per day for high moisture environments.
• Dehumidification capacity (24K): 131.9 pints per day for maximum dehumidification.
• Maximum air flow volume (9K): 326 CFM (554 m³/h) for efficient air circulation.
• Maximum air flow volume (12K): 500 CFM (850 m³/h) for enhanced airflow.
• Maximum air flow volume (18K): 735 CFM (1249.5 m³/h) for powerful ventilation.
• Maximum air flow volume (24K): 735 CFM (1249.5 m³/h) for consistent performance.
• SEER2 rating (18K): 24 for high energy efficiency.
• SEER2 rating (27K): 24 for optimal cooling efficiency.
• SEER2 rating (35K): 22.5 for reliable energy savings.
• HSPF2 rating (18K): 10.5 for efficient heating performance.
• HSPF2 rating (27K): 10.5 for consistent warmth.
• HSPF2 rating (35K): 10 for effective heating in colder conditions.
• Certified by Energy Star for verified energy efficiency and environmental standards.

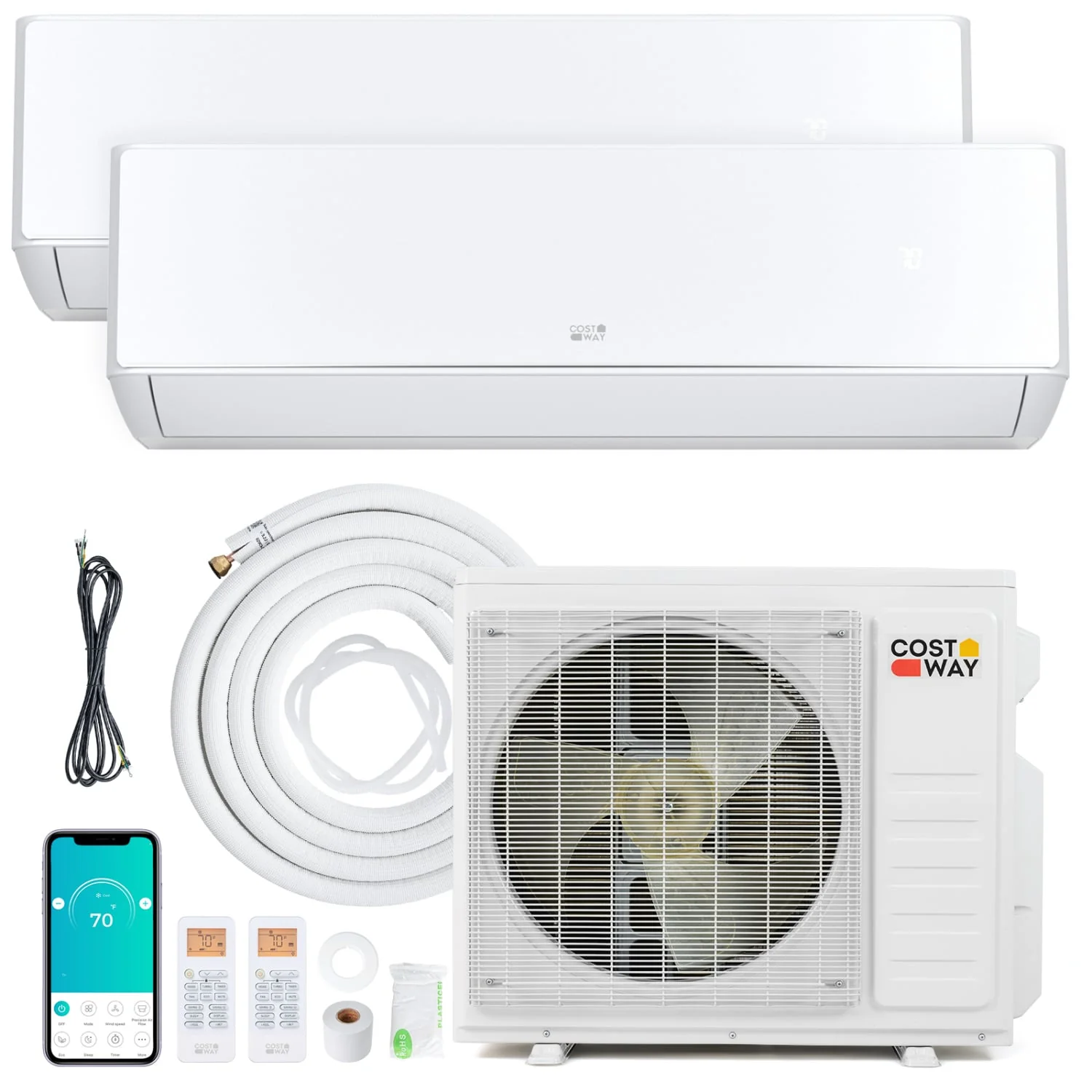

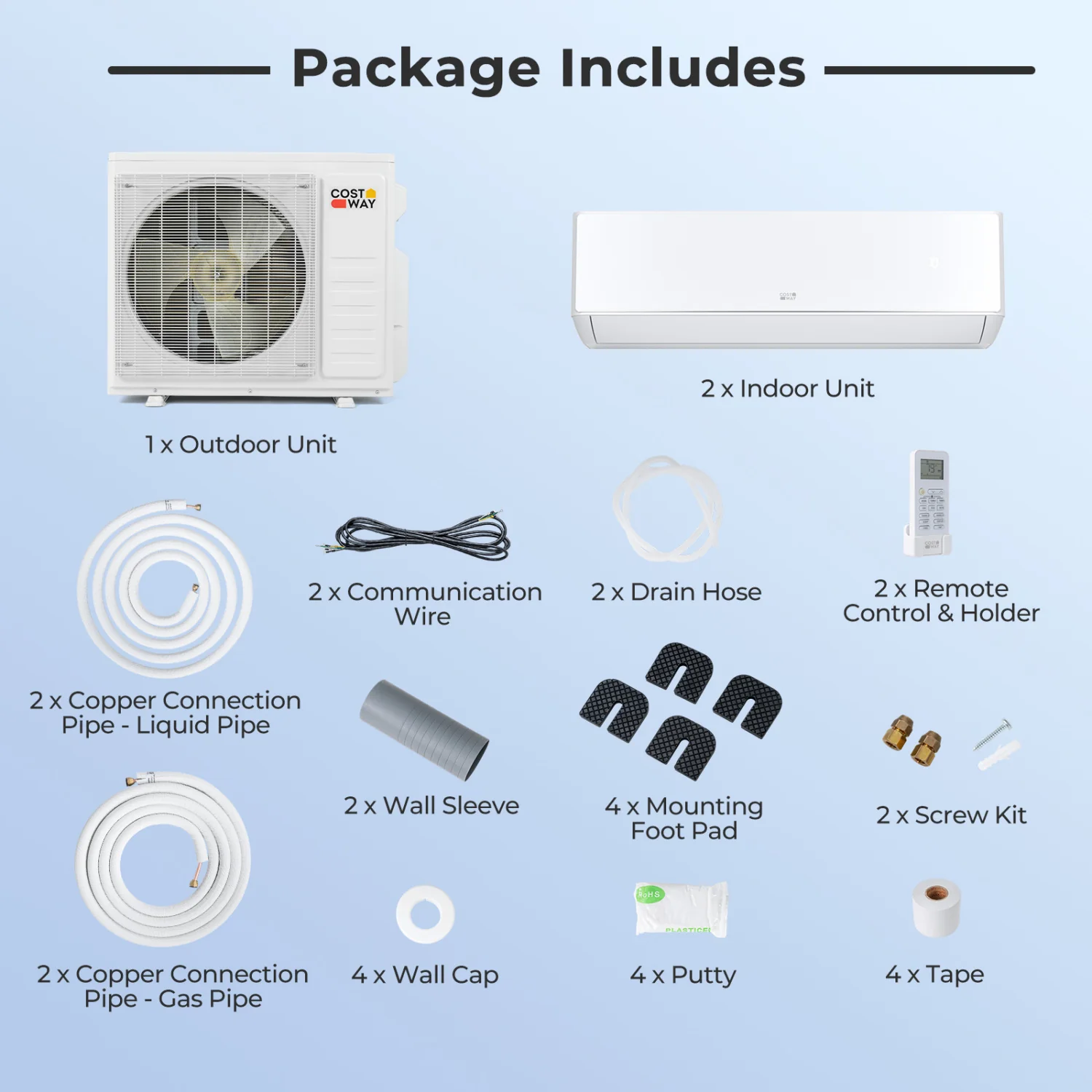

Package Includes:

• 1 x outdoor unit for exterior installation.
• 2 x indoor unit for multi-zone climate control.
• 2 x copper connection pipe (gas pipe) for refrigerant flow.
• 2 x copper connection pipe (liquid pipe) for efficient cooling and heating.
• 2 x communication wire for connectivity between units.
• 2 x drain hose for moisture removal.
• 2 x remote control and holder for easy operation.
• 2 x wall sleeve for secure mounting.
• 4 x wall cap for finishing touches.
• 4 x tape for installation sealing.
• 4 x putty for additional sealing.
• 2 x screw kit for assembly.
• 4 x mounting foot pad for stable outdoor unit placement.
• 5 x user guide for setup and operation instructions.

Package Quantity: 1
