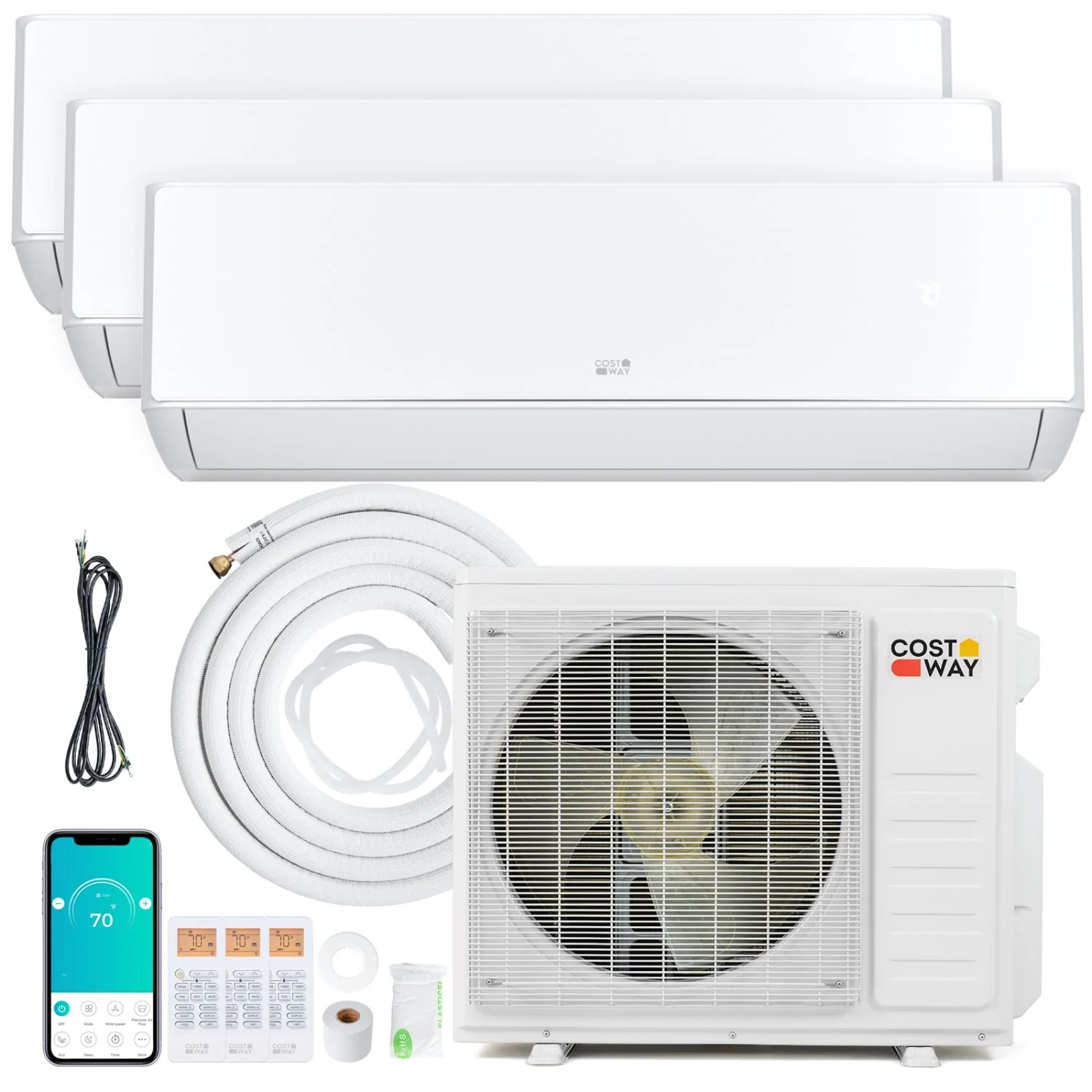

27000 BTU 3 Zone Mini Split AC, 24 SEER2 Heat Pump, 12K+12K+12K, White

Experience year-round comfort with this 3-zone 27000 BTU mini split air conditioner and heater, featuring advanced inverter technology for high energy efficiency up to 24 SEER2. Enjoy smart control via app, remote, or voice commands, with quiet operation as low as 30 dB and reliable performance in extreme temperatures from -25°C to 55°C.

Overview:

• Provides fast cooling and heating for three independent zones, ideal for larger homes.
• Offers versatile control with 7 operating modes and 8 fan speeds to suit various comfort needs.

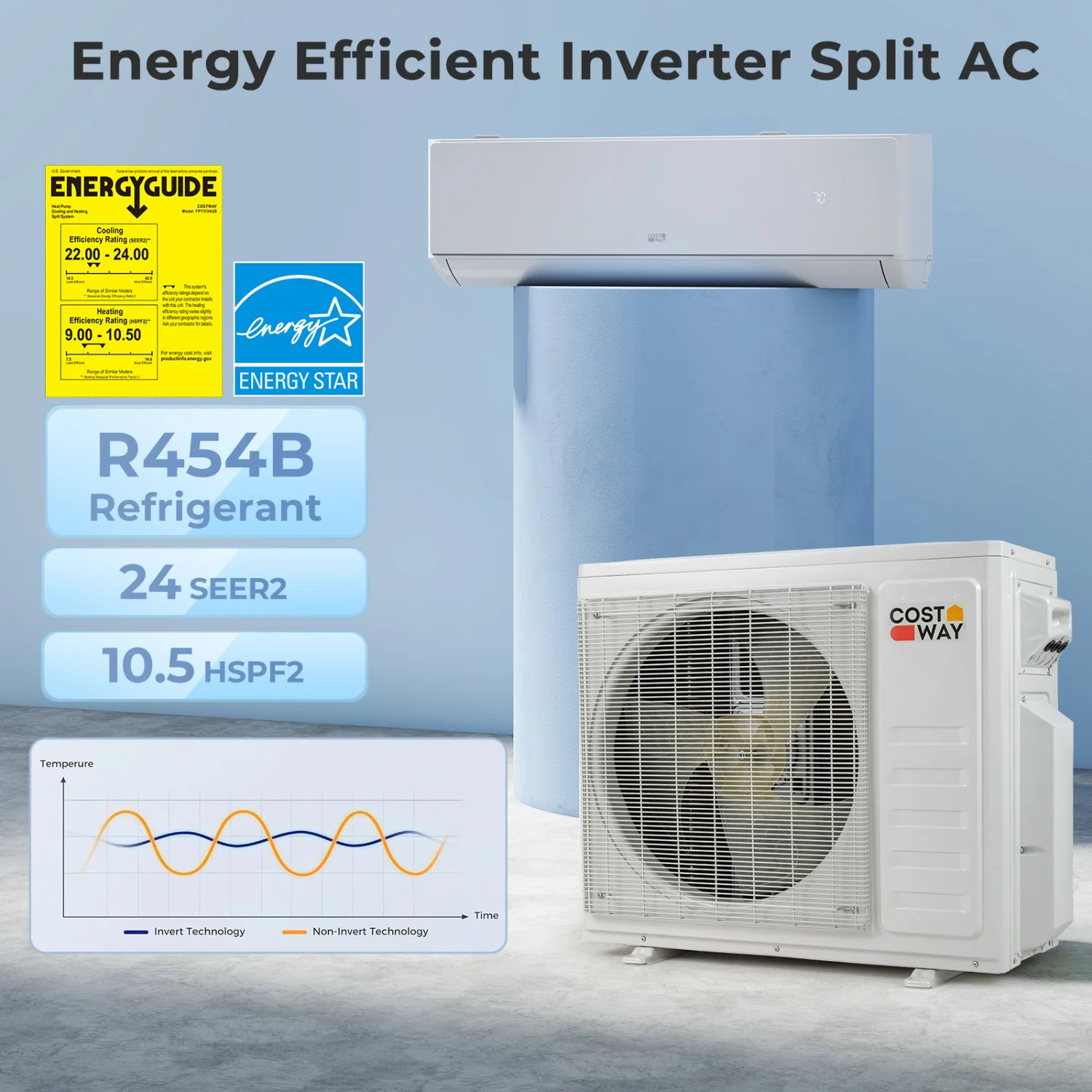

• Features high energy efficiency with inverter technology and R454B refrigerant, certified by Energy Star.
• Includes smart capabilities for control via smartphone app, remote, or voice commands with Alexa and Google Assistant.
• Ensures quiet operation with sound levels as low as 30 dB, perfect for peaceful environments.
• Note: Professional installation by a technician is recommended for optimal performance and safety.

Highlights:

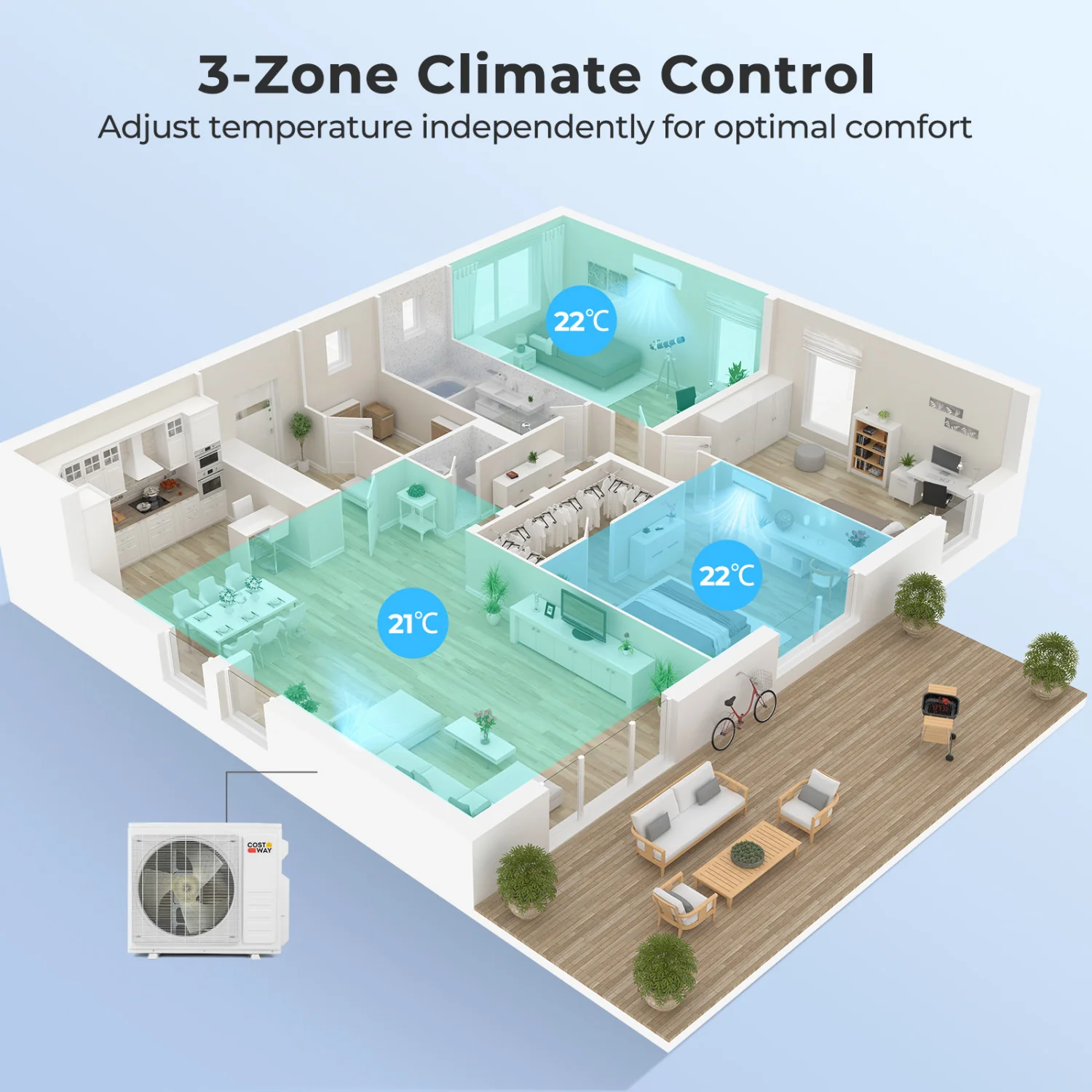

• Fast cooling and heating for 3 independent zones with room-by-room comfort control.
• High energy efficiency up to 24 SEER2 with inverter technology and R454B refrigerant, Energy Star certified.
• Smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant.
• Quiet operation with sound levels as low as 30 dB, ensuring a peaceful environment.
• Reliable performance in harsh weather, cooling up to 55°C and heating down to -25°C.
• Self-clean function and washable filter for easier maintenance and fresher airflow.
• Child lock to prevent accidental changes to settings for added safety.
• 4D swing for even air distribution and enhanced comfort throughout the space.

Features:

• Supports 3 zones for independent temperature control in larger homes.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• High energy efficiency with inverter technology and R454B refrigerant, rated up to 24 SEER2.

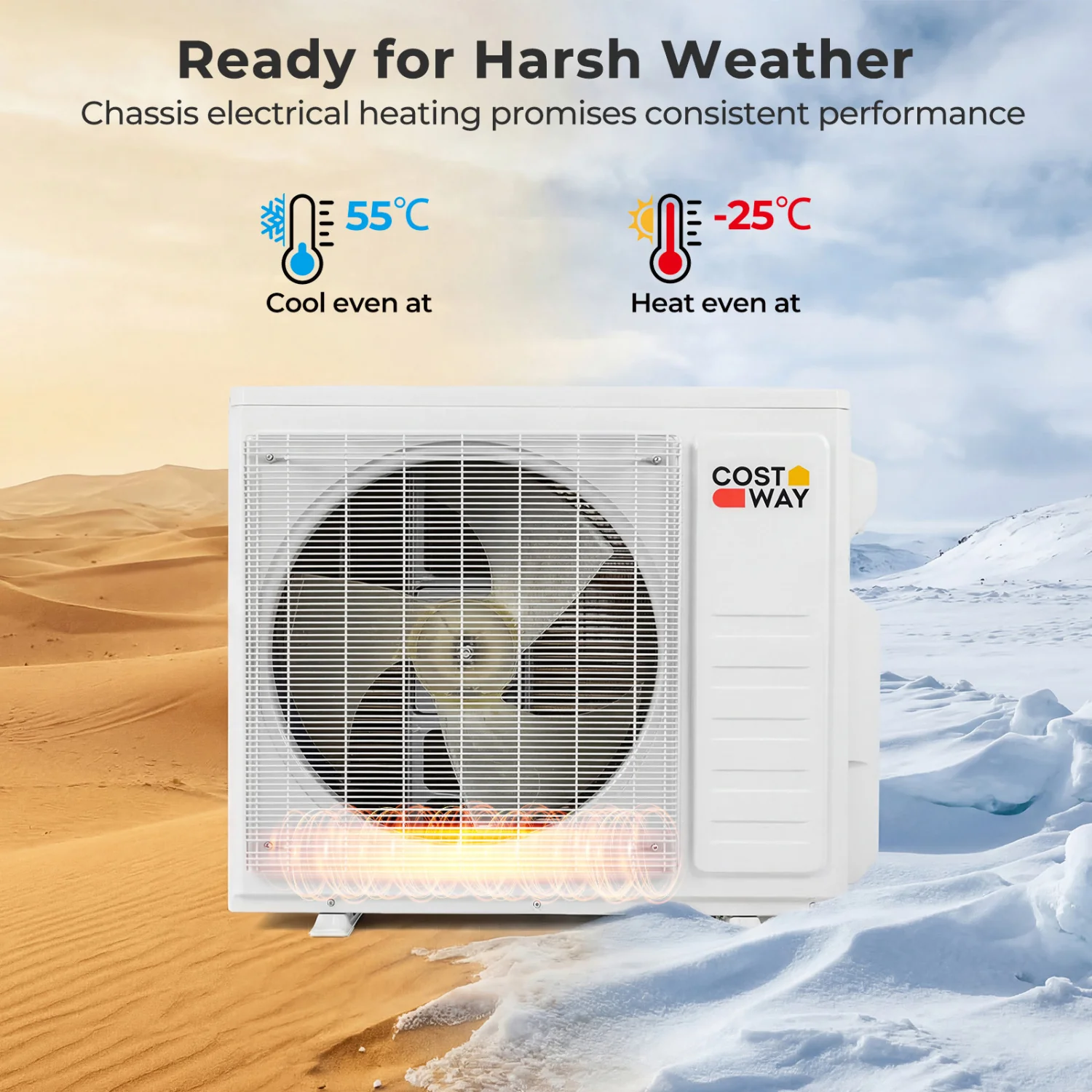

• Chassis electrical heating for consistent performance in tough weather conditions.
• Smart control via WiFi-enabled system compatible with Alexa and Google Assistant.
• Includes a remote control for convenient adjustments.
• Sleep mode for peaceful nights and screen off function.
• 24-hour timer for effortless scheduling and energy savings.
• 4D auto swing for even air distribution.
• Removable and washable filter for easy cleaning.
• Self-clean function to maintain fresher airflow over time.
• Child lock to prevent accidental changes to settings.
• Certified by Energy Star for energy efficiency.
• Quiet operation with indoor unit noise level as low as 30 dB.
• Maximum remote control distance of 39.5 feet.
• Note: Installation by a professional technician is recommended.

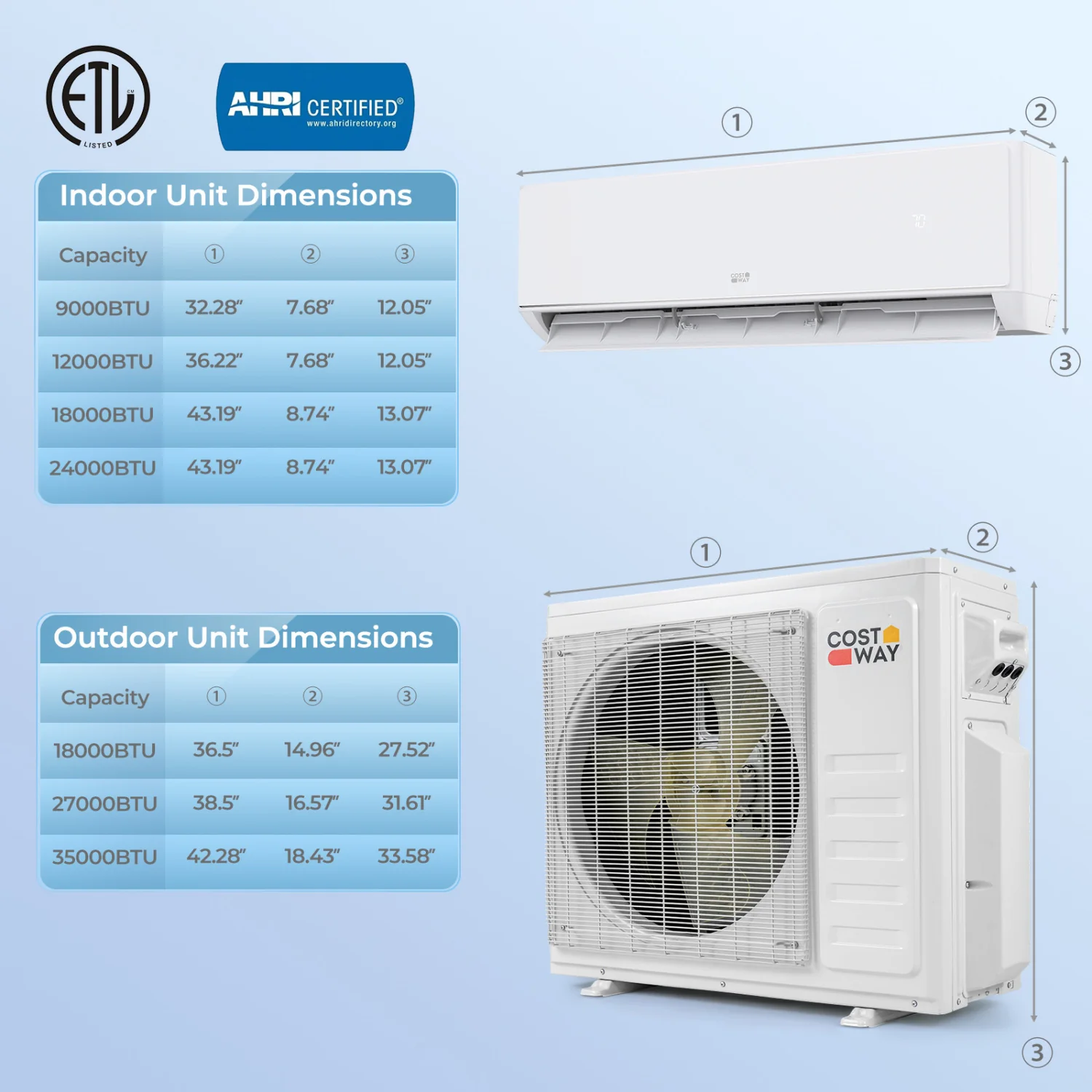

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 lbs (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 lbs (11.0 kg).
• Net Weight of Indoor Unit (18K): 30.9 lbs (14.0 kg).
• Net Weight of Indoor Unit (24K): 30.9 lbs (14.0 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42.0 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54.0 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66.0 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 3.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 ft.
• Coverage Area (9K): 450 Sq.Ft.
• Coverage Area (12K): 750 Sq.Ft.
• Coverage Area (18K): 1250 Sq.Ft.
• Coverage Area (24K): 1500 Sq.Ft.
• Dehumidification Capacity (9K): 55.8 Pints/Day.
• Dehumidification Capacity (12K): 81.2 Pints/Day.
• Dehumidification Capacity (18K): 111.6 Pints/Day.
• Dehumidification Capacity (24K): 131.9 Pints/Day.
• Maximum Air Flow Volume (9K): 326 CFM/554 m³/h.
• Maximum Air Flow Volume (12K): 500 CFM/554 m³/h.
• Maximum Air Flow Volume (18K): 735 CFM/554 m³/h.
• Maximum Air Flow Volume (24K): 735 CFM/554 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

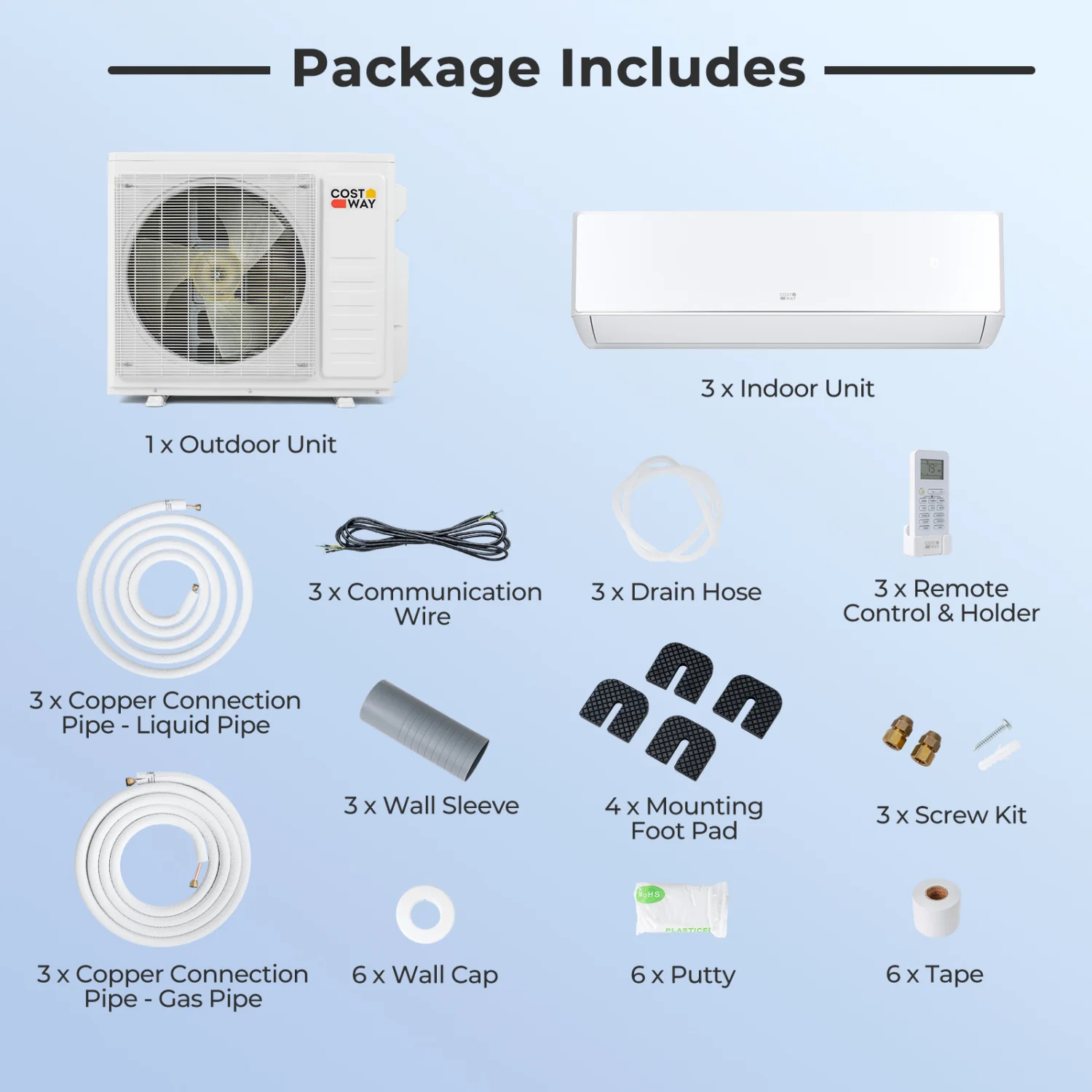

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control & Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 7 x User Guide.

Package Quantity: 1
