27000 BTU 3 Zone Mini Split AC, 9K + 9K + 9K, White

Experience year-round comfort with this 27000 BTU 3-zone mini split air conditioner and heater, featuring advanced inverter technology for high energy efficiency up to 24 SEER2, smart WiFi control with Alexa and Google Assistant compatibility, and quiet operation as low as 30 dB for peaceful indoor environments.

Overview:

• Provides fast cooling and heating for three independent zones, ideal for larger homes.
• Offers versatile control with 7 operating modes and 8 fan speeds to suit various comfort needs.
• Ensures consistent performance in harsh weather with chassis electrical heating, cooling up to 55°C and heating down to -25°C.
• Note: Professional installation by a technician is recommended for optimal safety and performance.

Highlights:

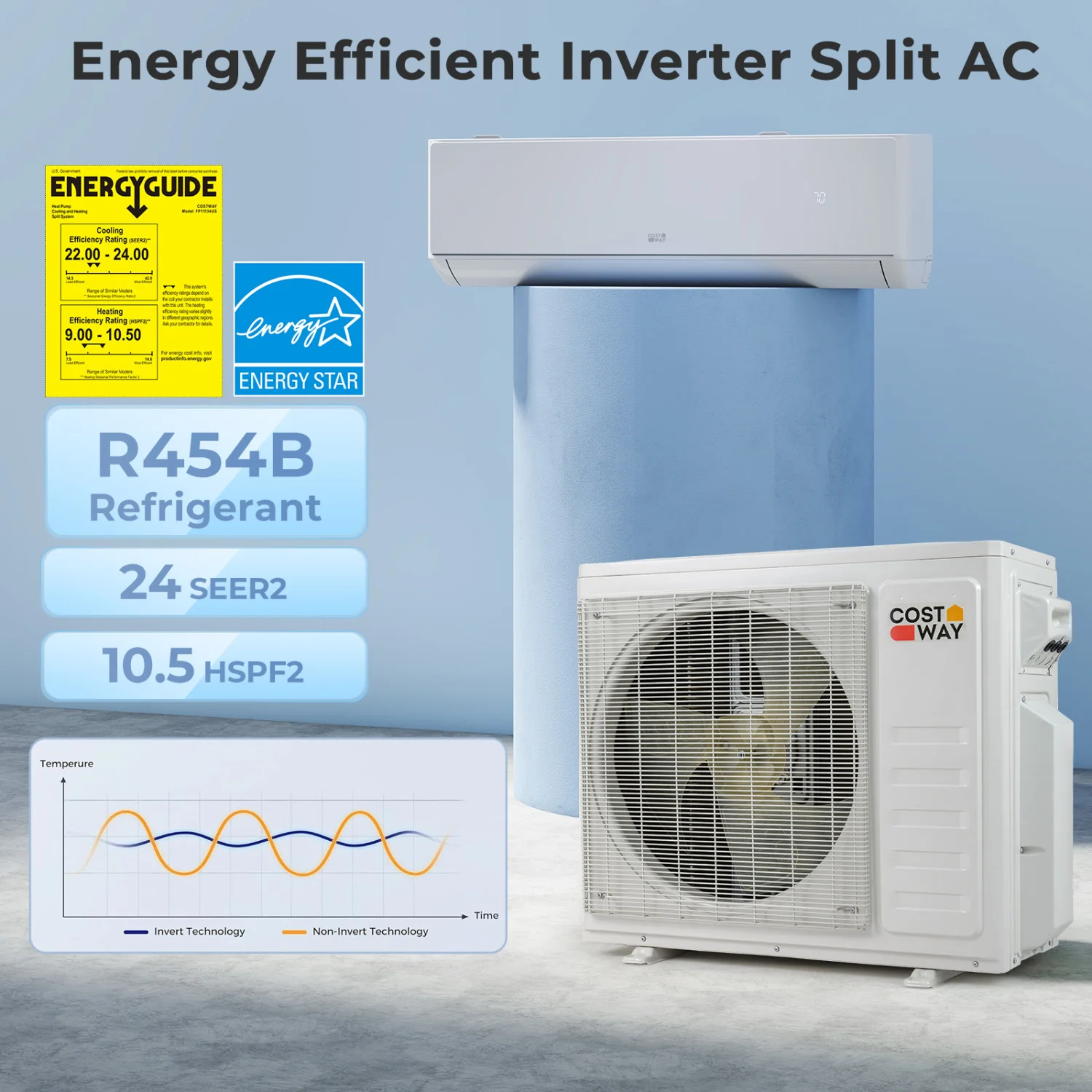

• Energy Star certified with high efficiency up to 24 SEER2 using R454B refrigerant.
• Smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant.
• Quiet operation with sound levels as low as 30 dB and sleep mode for peaceful nights.
• Easy maintenance with removable and washable filter and self-clean function.
• 4D swing ensures even air distribution for enhanced comfort throughout the room.
• Child lock prevents accidental changes to settings for added safety.
• 24-hour timer allows for effortless scheduling and energy savings.
• Screen off function reduces light disturbance during use.

Features:

• Supports 3-zone climate control for room-by-room comfort in larger homes.
• Multi-zone design allows independent temperature adjustment for optimal comfort.
• 4D auto swing helps distribute airflow more evenly across the space.
• Rated up to 24 SEER2 for energy-efficient performance.
• Uses R454B refrigerant for efficient heating and cooling with lower global warming potential.
• Advanced inverter technology minimizes energy waste and maintains steady set temperatures.
• WiFi-enabled for smart control compatibility with Alexa and Google Assistant.
• Includes a handy remote control for fast adjustments.
• Offers 7 modes: auto, cool, heat, dry, fan, ECO, and sleep.
• Provides 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Features a 24-hour timer for scheduling convenience.
• Equipped with a child lock to prevent accidental setting changes.
• Chassis electrical heating system ensures dependable performance in tough weather.
• Cools in ambient temperatures up to 55°C and heats down to -25°C.
• Runs with low sound levels as low as 30 dB for a peaceful environment.
• Self-clean function maintains fresher airflow over time.
• Removable and washable filter allows for easy cleaning and maintenance.
• Note: Installation by a professional technician is recommended.

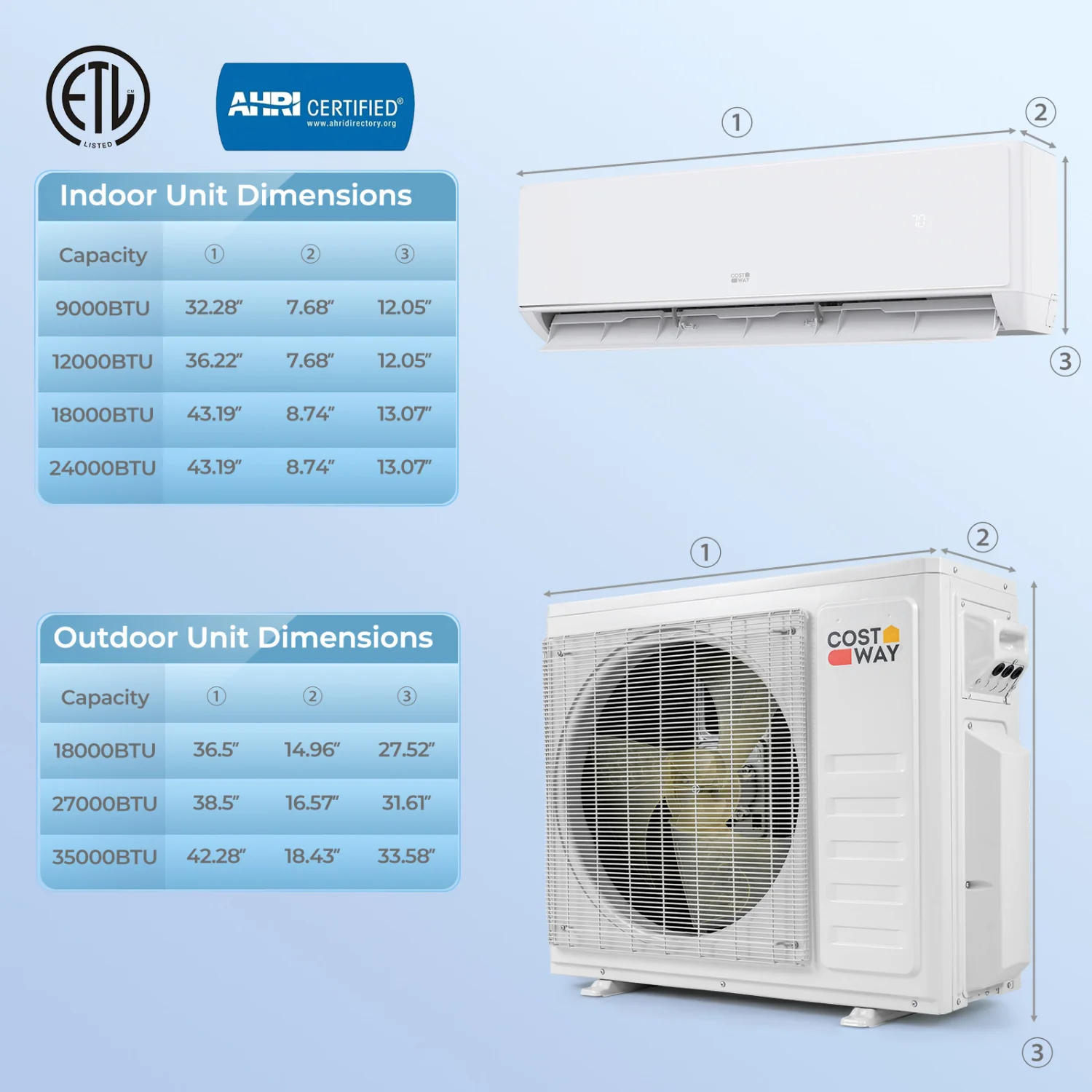

Weight & Dimensions:

• Indoor Unit Dimensions - 9K: 32.28 inches (82.0 cm) length x 7.68 inches (19.5 cm) width x 12.05 inches (30.6 cm) height.
• Indoor Unit Dimensions - 12K: 36.22 inches (92.0 cm) length x 7.68 inches (19.5 cm) width x 12.05 inches (30.6 cm) height.
• Indoor Unit Dimensions - 18K: 43.19 inches (109.7 cm) length x 8.74 inches (22.2 cm) width x 13.07 inches (33.2 cm) height.
• Indoor Unit Dimensions - 24K: 43.19 inches (109.7 cm) length x 8.74 inches (22.2 cm) width x 13.07 inches (33.2 cm) height.
• Outdoor Unit Dimensions - 18K: 36.5 inches (92.7 cm) length x 14.96 inches (38.0 cm) width x 27.52 inches (69.9 cm) height.
• Outdoor Unit Dimensions - 27K: 38.5 inches (97.8 cm) length x 16.57 inches (42.1 cm) width x 31.61 inches (80.3 cm) height.
• Outdoor Unit Dimensions - 35K: 42.28 inches (107.4 cm) length x 18.43 inches (46.8 cm) width x 33.58 inches (85.3 cm) height.
• Net Weight of 9K Indoor Unit: 20.7 pounds (9.4 kg).
• Net Weight of 12K Indoor Unit: 24.3 pounds (11.0 kg).
• Net Weight of 18K Indoor Unit: 30.9 pounds (14.0 kg).
• Net Weight of 24K Indoor Unit: 30.9 pounds (14.0 kg).
• Net Weight of 18K Outdoor Unit: 92.6 pounds (42.0 kg).
• Net Weight of 27K Outdoor Unit: 119 pounds (54.0 kg).
• Net Weight of 35K Outdoor Unit: 145.5 pounds (66.0 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe - 9K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe - 12K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe - 18K: 1/2 inch (1.27 cm).
• Diameter of Gas Pipe - 24K: 5/8 inch (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 3.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C (61°F to 88°F).
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 feet (12.0 meters).
• Coverage Area - 9K: 450 square feet (41.8 square meters).
• Coverage Area - 12K: 750 square feet (69.7 square meters).
• Coverage Area - 18K: 1250 square feet (116.1 square meters).
• Coverage Area - 24K: 1500 square feet (139.4 square meters).
• Dehumidification Capacity - 9K: 55.8 pints per day (26.4 liters per day).
• Dehumidification Capacity - 12K: 81.2 pints per day (38.4 liters per day).
• Dehumidification Capacity - 18K: 111.6 pints per day (52.8 liters per day).
• Dehumidification Capacity - 24K: 131.9 pints per day (62.4 liters per day).
• Maximum Air Flow Volume - 9K: 326 CFM (554 m³/h).
• Maximum Air Flow Volume - 12K: 500 CFM (554 m³/h).
• Maximum Air Flow Volume - 18K: 735 CFM (554 m³/h).
• Maximum Air Flow Volume - 24K: 735 CFM (554 m³/h).
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

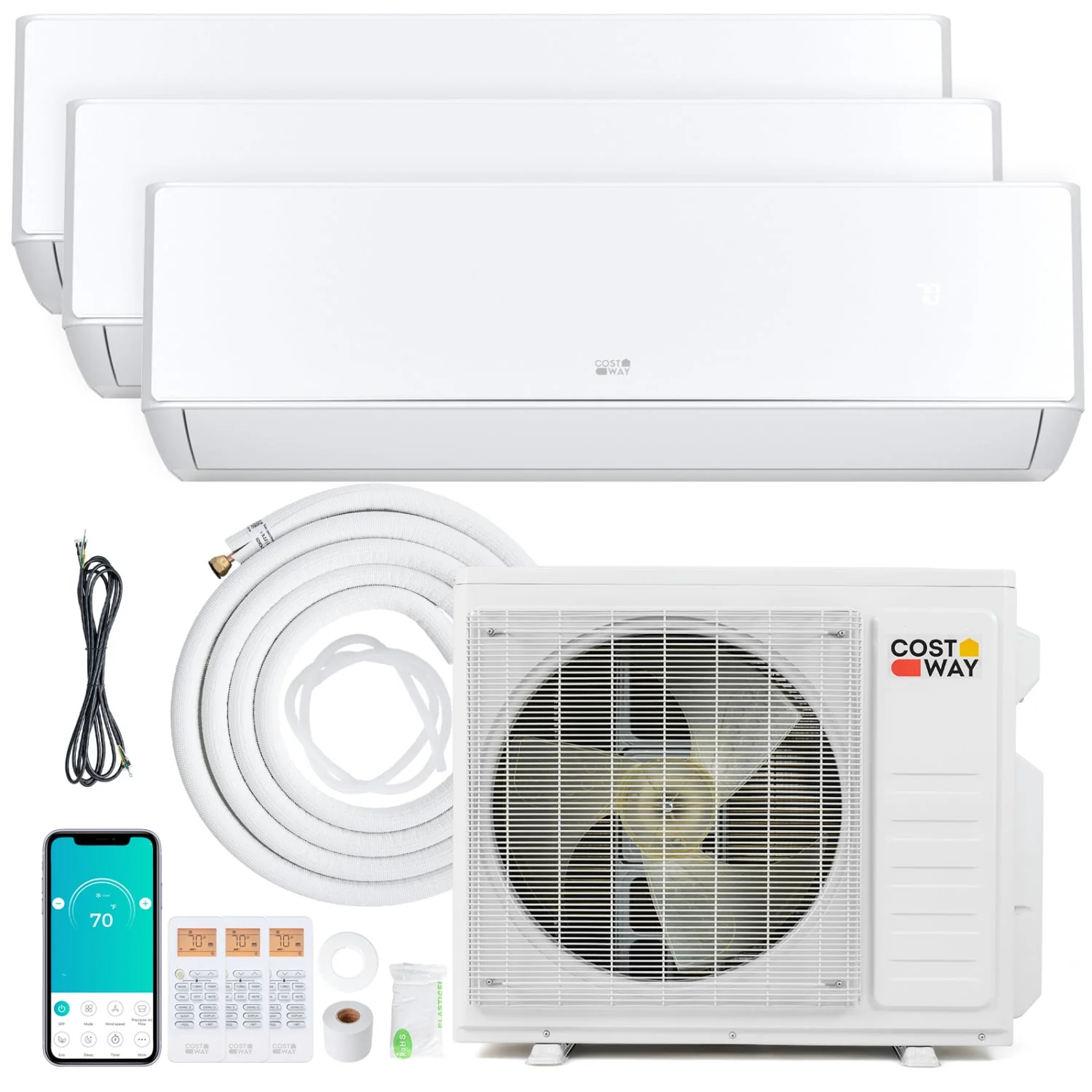

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control & Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 7 x User Guide.

Package Quantity: 1
