35000 BTU 3 Zone 22.5 SEER2 Mini Split AC, Heat Pump, 9K + 9K + 9K, White

Experience year-round comfort with this 3-zone 35000 BTU mini split air conditioner and heater, offering efficient cooling and heating for multiple rooms. Featuring smart WiFi control, quiet operation, and advanced inverter technology for energy savings, it's ideal for larger homes seeking customizable climate solutions.

Overview:

• Provides all-season comfort with fast cooling and heating for three independent zones.
• Designed for larger homes, offering room-by-room temperature control and even air distribution.
• Features smart connectivity via app, remote, or voice commands for flexible operation.
• Ensures quiet, peaceful operation with low noise levels and easy maintenance functions.
• Note: Professional installation is recommended for optimal performance and safety.

Highlights:

• Fast cooling and heating for three independent zones with precise temperature control.
• High energy efficiency with inverter technology and Energy Star certification.
• Smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• Quiet operation as low as 30 dB, ideal for peaceful sleep and work environments.
• Self-clean function and washable filter for easier maintenance and fresher airflow.
• Reliable performance in harsh weather, cooling up to 55°C and heating down to -25°C.
• Multiple operating modes and fan speeds to suit various comfort needs.
• Child lock feature to prevent accidental changes to settings.

Features:

• 3-zone climate control for room-by-room comfort in larger homes.
• Energy-efficient performance with up to 22.5 SEER2 rating and R454B refrigerant.
• Advanced inverter technology to minimize energy waste and maintain steady temperatures.
• Smart WiFi-enabled control compatible with Alexa and Google Assistant.
• Includes a remote control for fast adjustments and convenience.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for effortless scheduling and energy savings.
• 4D auto swing for even air distribution and added comfort.
• Chassis electrical heating system for consistent performance in tough weather.
• Quiet operation with indoor unit noise levels as low as 30 dB.
• Self-clean function to maintain fresher airflow over time.
• Removable and washable filter for easy cleaning.
• Child lock to prevent accidental changes to settings.
• Screen off function for reduced distractions during use.
• Note: Installation by a professional technician is recommended.

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 lbs (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 lbs (11 kg).
• Net Weight of Indoor Unit (18K): 30.9 lbs (14 kg).
• Net Weight of Indoor Unit (24K): 30.9 lbs (14 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi-zone combination: 3 zones.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature setting range: 60°F to 88°F (15.6°C to 31.1°C).
• Refrigerant: R454B.
• Indoor unit noise level: 30 dB.
• Maximum remote control distance: 39.5 ft (12 m).
• Coverage area (9K): 450 sq. ft (41.8 sq. m).
• Coverage area (12K): 750 sq. ft (69.7 sq. m).
• Coverage area (18K): 1250 sq. ft (116.1 sq. m).
• Coverage area (24K): 1500 sq. ft (139.4 sq. m).
• Dehumidification capacity (9K): 55.8 pints per day (26.4 liters per day).
• Dehumidification capacity (12K): 81.2 pints per day (38.4 liters per day).
• Dehumidification capacity (18K): 111.6 pints per day (52.8 liters per day).
• Dehumidification capacity (24K): 131.9 pints per day (62.4 liters per day).
• Maximum air flow volume (9K): 326 CFM (554 m³/h).
• Maximum air flow volume (12K): 500 CFM (554 m³/h).
• Maximum air flow volume (18K): 735 CFM (554 m³/h).
• Maximum air flow volume (24K): 735 CFM (554 m³/h).
• SEER2 rating (18K): 24.
• SEER2 rating (27K): 24.
• SEER2 rating (35K): 22.5.
• HSPF2 rating (18K): 10.5.
• HSPF2 rating (27K): 10.5.
• HSPF2 rating (35K): 10.
• Certified by Energy Star for energy efficiency.
• Operates in ambient temperatures from -25°C to 55°C for reliable performance.

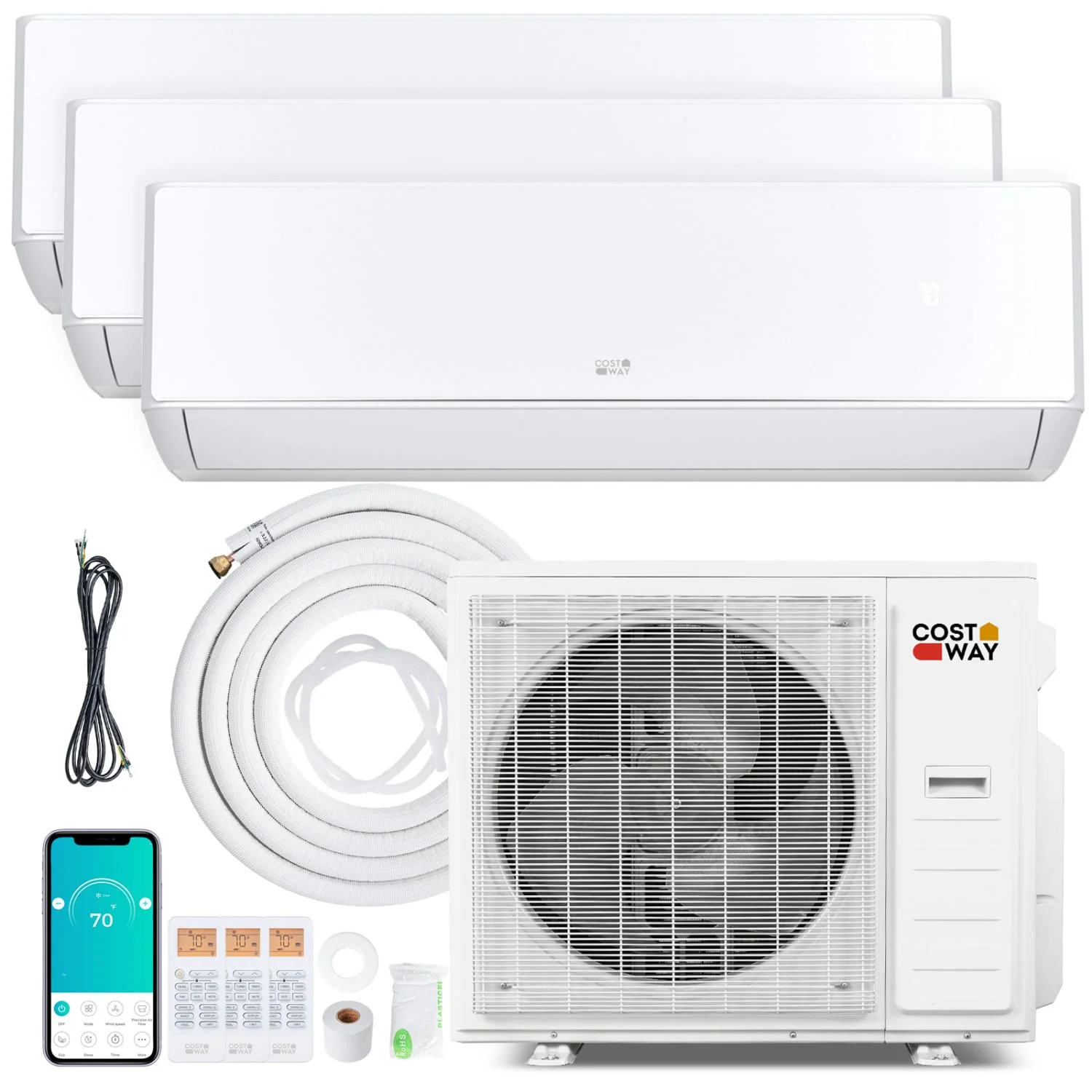

Package Includes:

• 1 x outdoor unit.
• 3 x indoor unit.
• 3 x copper connection pipe (gas pipe).
• 3 x copper connection pipe (liquid pipe).
• 3 x communication wire.
• 3 x drain hose.
• 3 x remote control and holder.
• 3 x wall sleeve.
• 6 x wall cap.
• 6 x tape.
• 6 x putty.
• 3 x screw kit.
• 4 x mounting foot pad.
• 7 x user guide.

Package quantity: 1.
