35000 BTU 4 Zone 22.5 SEER2 Mini Split AC, Heat Pump, 9K + 12K + 12K + 12K

Experience year-round comfort with this 4-zone 35000 BTU mini split air conditioner and heater, featuring smart WiFi control, high energy efficiency up to 22.5 SEER2, and quiet operation as low as 30 dB. Ideal for larger homes, it provides independent climate control for each zone with advanced inverter technology and R454B refrigerant for reliable performance in harsh weather conditions.

Overview:

• Provides all-season comfort with fast cooling and heating for 4 independent zones.
• Designed for larger homes, offering room-by-room temperature control and even air distribution.
• Features smart control via app, remote, or voice commands for convenient adjustments.
• Note: Installation by a professional technician is recommended.

Highlights:

• Fast cooling and heating for 4 independent zones with 4D swing for even air distribution.
• High energy efficiency with inverter technology and R454B refrigerant, certified by Energy Star.
• Smart and flexible control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• Quiet operation with sound levels as low as 30 dB, ideal for peaceful sleep or work environments.
• Convenient features include 7 operating modes, 8 fan speeds, 24-hour timer, sleep mode, and child lock.
• Easy maintenance with removable and washable filter plus self-clean function for fresher airflow.
• Reliable performance in harsh weather with chassis electrical heating, cooling up to 55℃ and heating down to -25℃.

Features:

• 4-zone climate control for room-by-room comfort in larger homes.
• 35000 BTU capacity for efficient cooling and heating.
• 4D auto swing for even air distribution.
• Energy-efficient performance rated up to 22.5 SEER2.
• Energy Star certified for lower energy consumption.
• Uses R454B refrigerant with lower global warming potential.
• Advanced inverter technology minimizes energy waste and maintains steady temperatures.
• Smart WiFi-enabled control compatible with Alexa and Google Assistant.
• Includes remote control for fast adjustments.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for effortless scheduling and energy savings.
• Child lock to prevent accidental changes to settings.
• Chassis electrical heating system for dependable performance in tough weather.
• Cools in ambient temperatures up to 55℃ and heats down to -25℃.
• Quiet operation with sound levels as low as 30 dB.
• Self-clean function maintains fresher airflow over time.
• Removable and washable filter for easy cleaning.
• Screen off function for reduced light disturbance.
• Note: Installation by a professional technician is recommended.

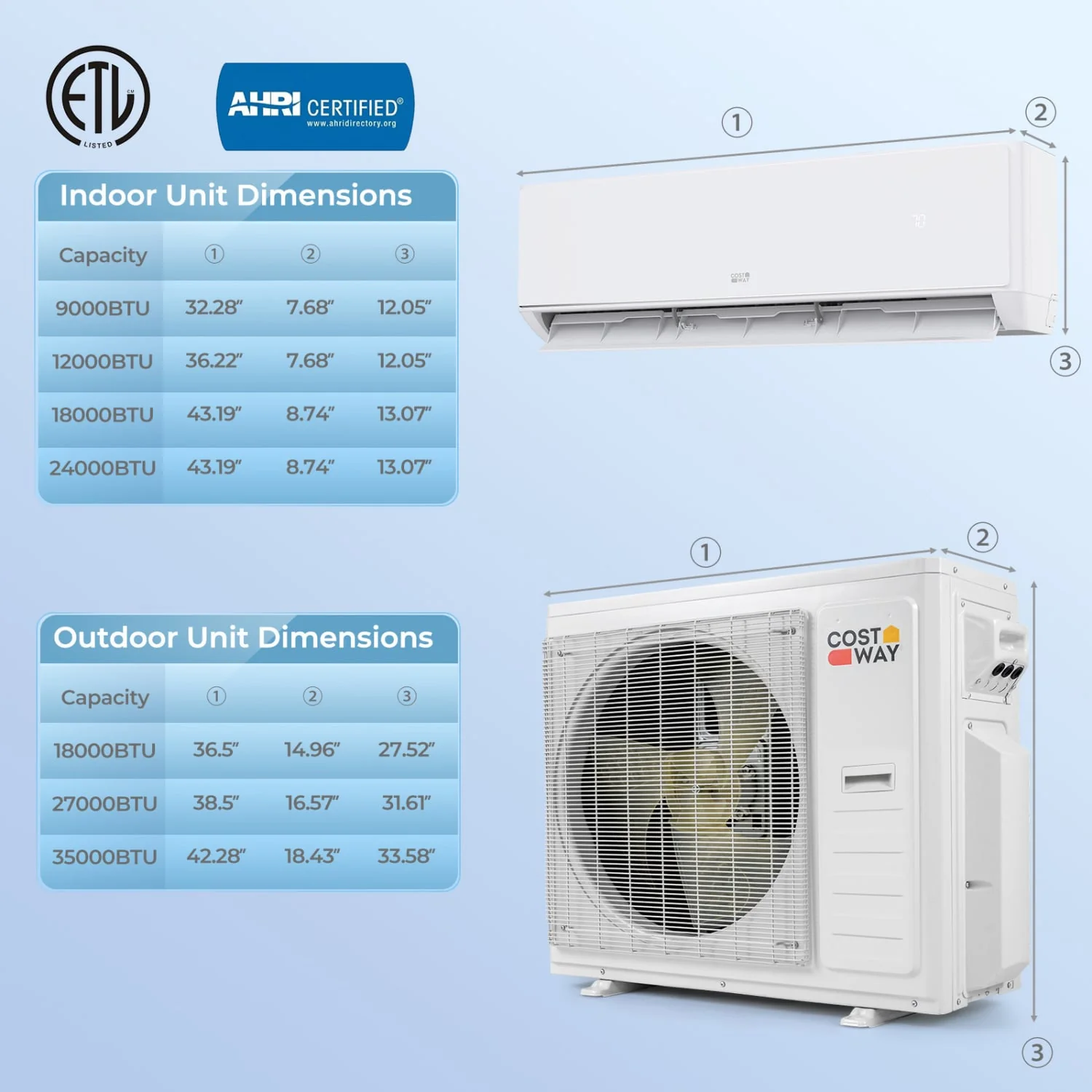

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 lbs (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 lbs (11 kg).
• Net Weight of Indoor Unit (18K): 30.9 lbs (14 kg).
• Net Weight of Indoor Unit (24K): 30.9 lbs (14 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃ (61°F~88°F).
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 ft (12 m).
• Coverage Area (9K): 450 Sq.Ft (41.8 m²).
• Coverage Area (12K): 750 Sq.Ft (69.7 m²).
• Coverage Area (18K): 1250 Sq.Ft (116.1 m²).
• Coverage Area (24K): 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity (9K): 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity (24K): 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume (9K): 326 CFM/554 m³/h.
• Maximum Air Flow Volume (12K): 500 CFM/554 m³/h.
• Maximum Air Flow Volume (18K): 735 CFM/554 m³/h.
• Maximum Air Flow Volume (24K): 735 CFM/554 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

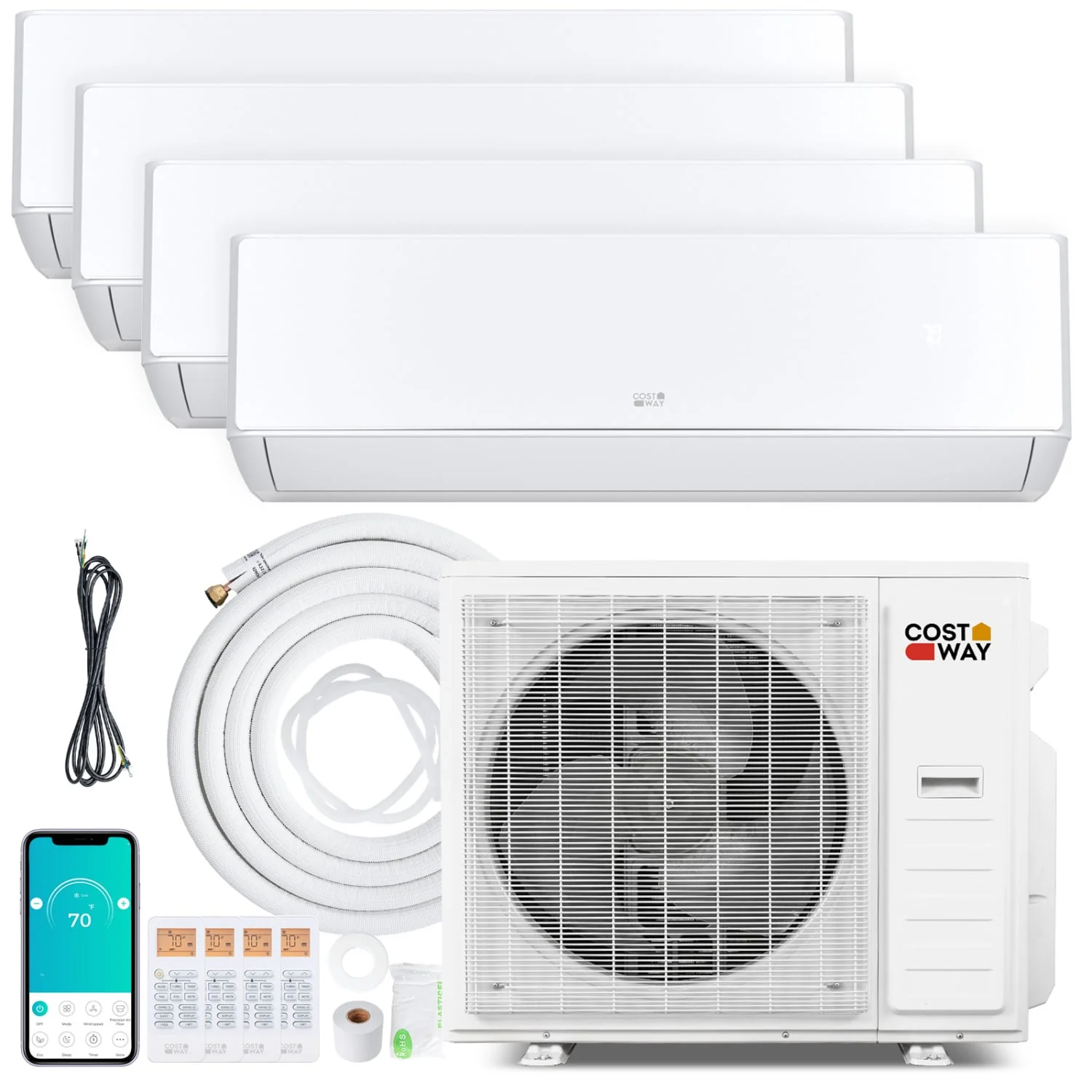

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 3 x Drain Hose.
• 4 x Remote Control & Holder.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 9 x User Guide.

Package Quantity: 1
