35000 BTU 4 Zone 22.5 SEER2 Mini Split AC, Heat Pump, 9K + 9K + 9K + 18K, White

Experience year-round comfort with this 35000 BTU 4-zone mini split air conditioner and heater, offering efficient cooling and heating for up to four independent rooms with smart controls, quiet operation, and Energy Star certification for optimal energy savings.

Overview:

• Provides all-season comfort with fast cooling and heating for 3 independent zones.
• Features 7 operating modes and 8 fan speeds to suit various comfort needs.
• Utilizes high energy efficiency with inverter technology and R454B refrigerant.
• Includes chassis electrical heating for consistent performance in harsh weather.
• Offers convenient control via smartphone app, remote, or voice commands.
• Ensures quiet operation with sleep mode and screen off function for peaceful nights.
• Features a 24-hour timer for effortless scheduling and energy savings.
• Provides even air distribution with 4D swing for added comfort.
• Includes removable and washable filter for easy cleaning.
• Maintains fresher airflow with a self-clean function.
• Prevents accidental changes with a child lock feature.
• Note: Installation by a professional technician is recommended.

Highlights:

• Fast cooling and heating for 3 independent zones.
• 7 operating modes and 8 fan speeds for customizable comfort.
• High energy efficiency with inverter technology and R454B refrigerant.
• Chassis electrical heating ensures consistent performance.
• Convenient control via smartphone app, remote, or voice commands.
• Sleep mode and screen off function for peaceful nights.
• 24-hour timer for effortless scheduling and energy savings.
• 4D swing ensures even air distribution for added comfort.
• Removable and washable filter for easy cleaning.
• Self-clean function maintains fresher airflow over time.
• Child lock prevents accidental changes to settings.
• Certified by Energy Star for energy savings.

Features:

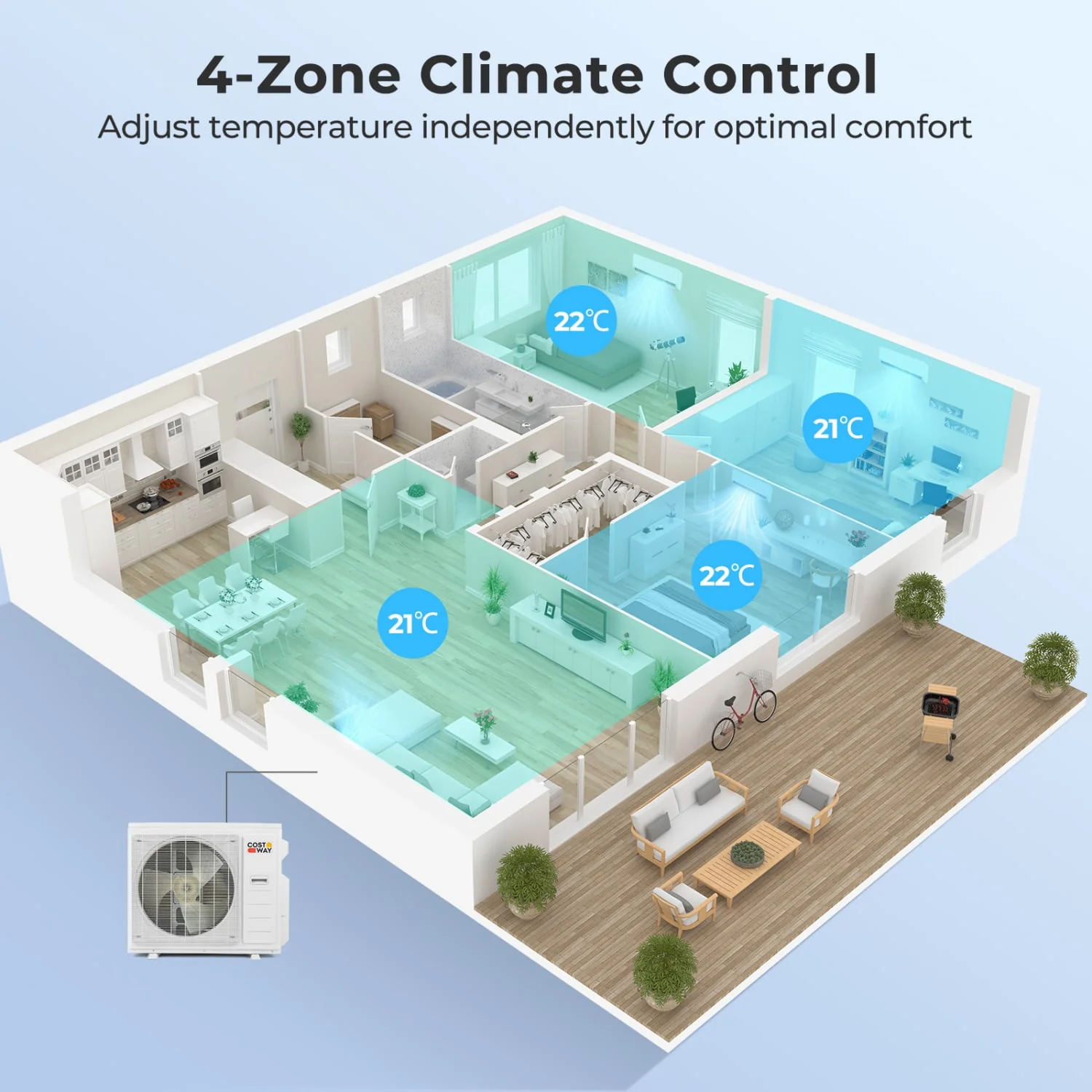

• 4-zone climate control for room-by-room comfort in larger homes.
• Multi-zone design allows independent temperature adjustment.
• 4D auto swing helps distribute airflow more evenly.
• Rated up to 22.5 SEER2 for energy-efficient performance.
• Uses R454B refrigerant for efficient heating and cooling with lower global warming potential.
• Advanced inverter technology minimizes energy waste and maintains steady set temperatures.
• WiFi-enabled for smart control compatibility with Alexa and Google Assistant.
• Includes a handy remote control for fast adjustments.
• Offers 7 modes: auto, cool, heat, dry, fan, ECO, and sleep.
• Provides 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Features a 24-hour timer for scheduling.
• Includes a child lock for everyday convenience.

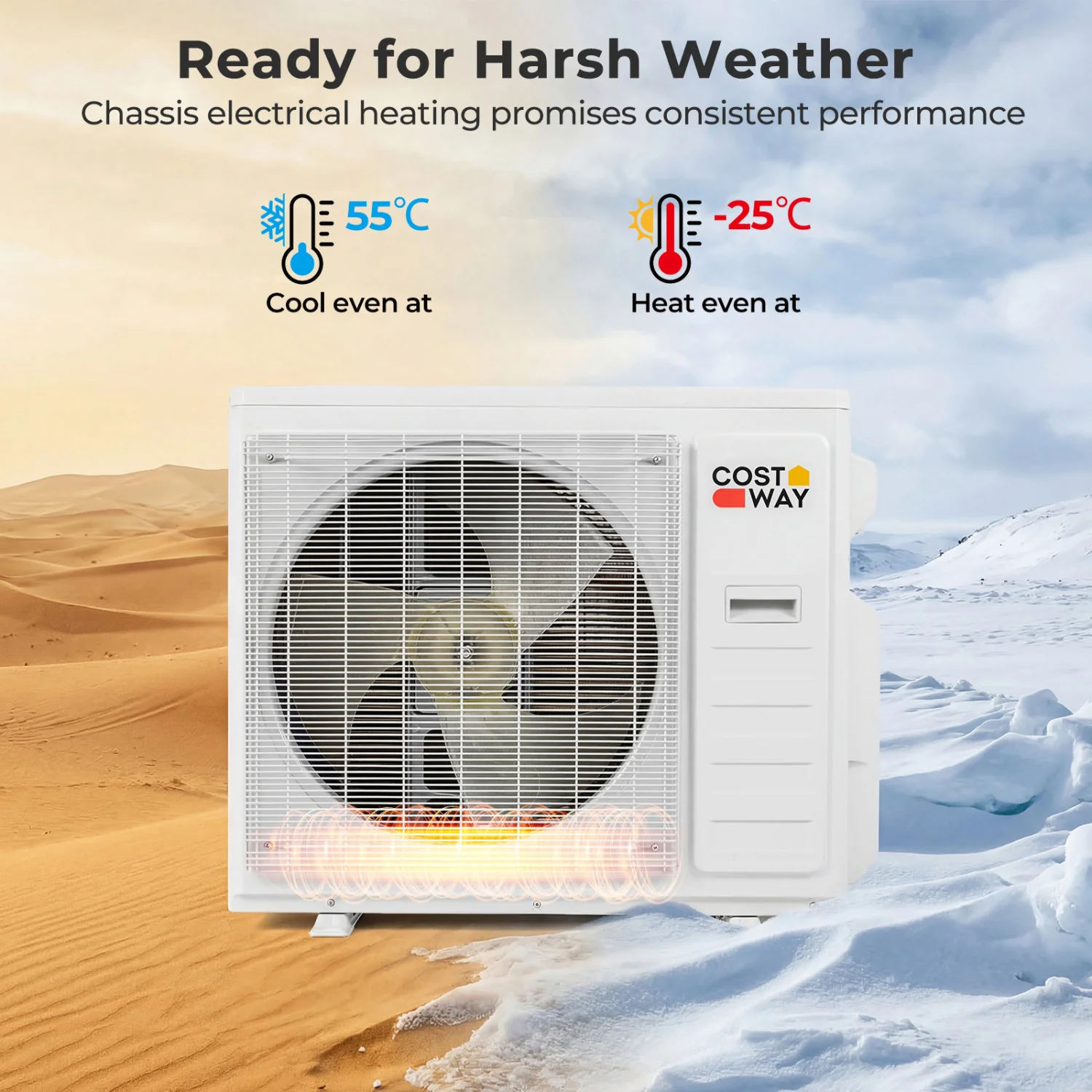

• Equipped with chassis electrical heating system for dependable performance in tough weather.
• Cools in ambient temperatures up to 55℃ and heats down to -25℃.
• Runs with low sound levels as low as 30 dB for a peaceful environment.
• Self-clean function allows for cleaner air and easier maintenance.
• Washable filter for simple maintenance.
• Note: Installation by a professional technician is recommended.

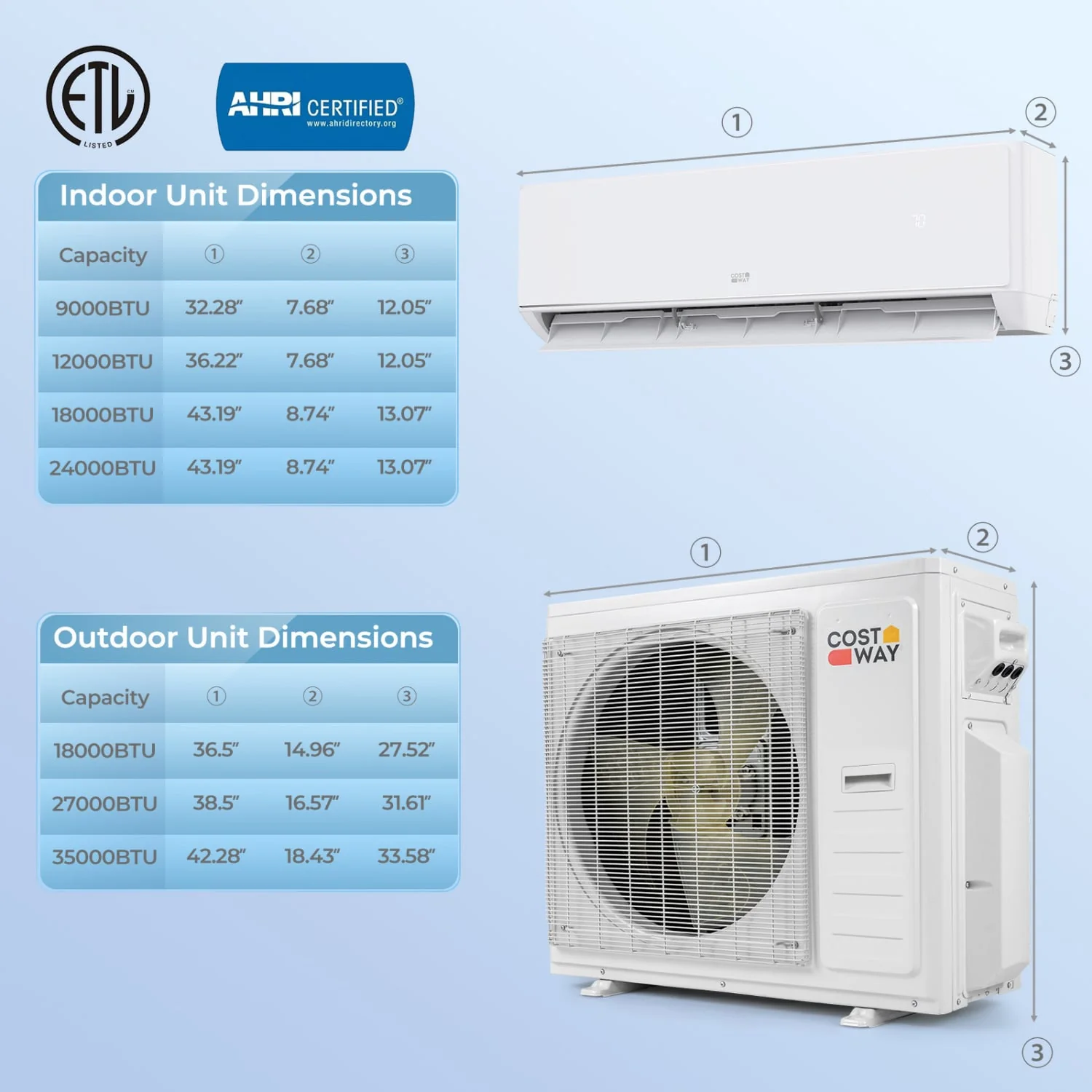

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).
• Net Weight of 9K Indoor Unit: 20.7 lbs (9.4 kg).
• Net Weight of 12K Indoor Unit: 24.3 lbs (11.0 kg).
• Net Weight of 18K Indoor Unit: 30.9 lbs (14.0 kg).
• Net Weight of 24K Indoor Unit: 30.9 lbs (14.0 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42.0 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54.0 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66.0 kg).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 ft (12.0 m).
• Coverage Area-9K: 450 Sq.Ft (41.8 m²).
• Coverage Area-12K: 750 Sq.Ft (69.7 m²).
• Coverage Area-18K: 1250 Sq.Ft (116.1 m²).
• Coverage Area-24K: 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity-9K: 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity-12K: 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity-18K: 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity-24K: 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume-9K: 326 CFM/554 m³/h.
• Maximum Air Flow Volume-12K: 500 CFM/554 m³/h.
• Maximum Air Flow Volume-18K: 735 CFM/554 m³/h.
• Maximum Air Flow Volume-24K: 735 CFM/554 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

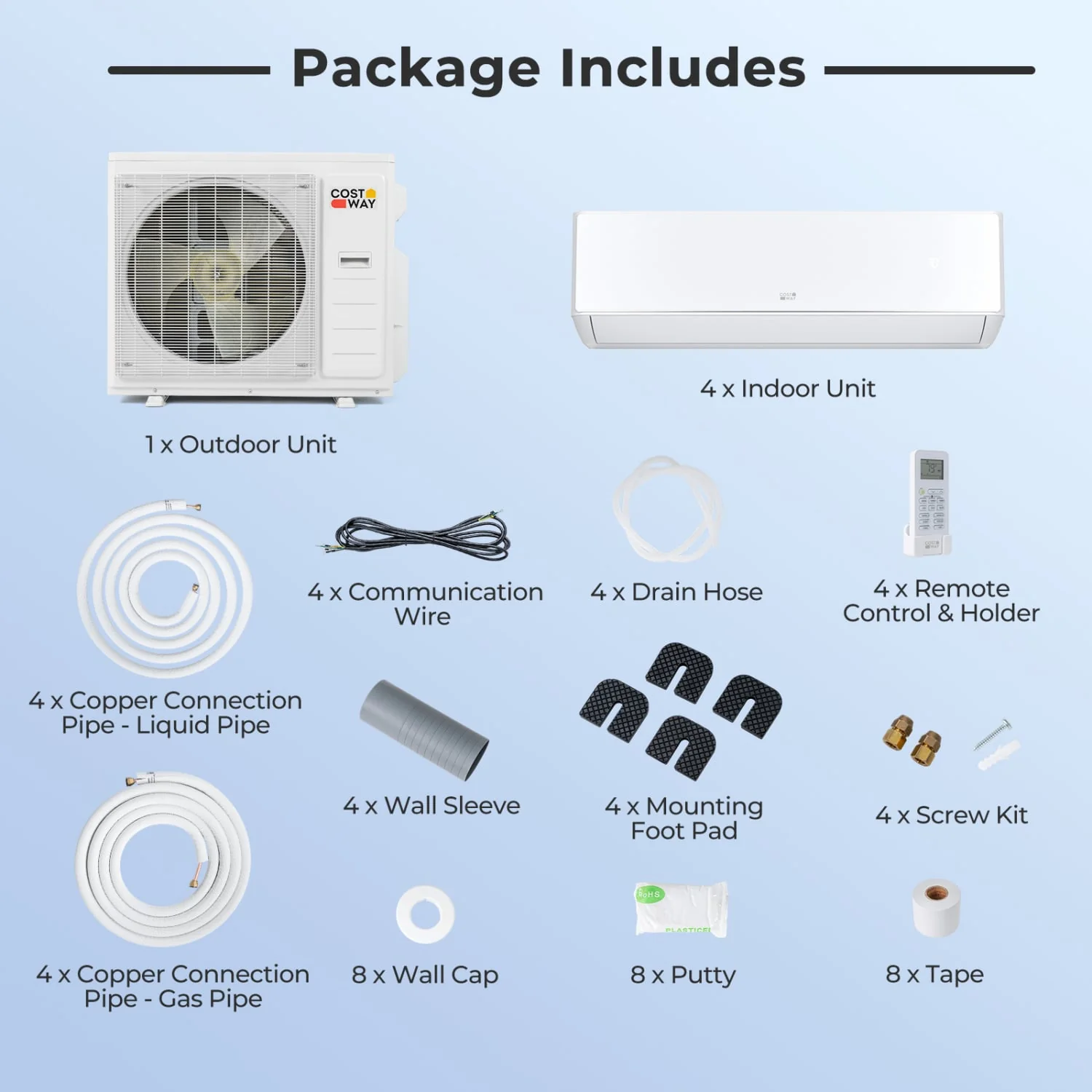

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 3 x Drain Hose.
• 4 x Remote Control & Holder.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 9 x User Guide.

Package Quantity: 1
