X-Pro 35000 BTU 4 Zone 22.5 SEER2 Mini Split AC, Heat Pump, 9K+9K+9K+9K, White

Experience year-round comfort with this 4-zone 35000 BTU mini split air conditioner, offering efficient cooling and heating for larger homes. Its smart features, including WiFi, voice control, and multiple operating modes, provide customizable climate control with energy-saving benefits.

Overview:

• Provides all-season comfort with fast cooling and heating for 4 independent zones.
• Ideal for larger homes, allowing room-by-room temperature adjustments for optimal comfort.
• Features advanced inverter technology and R454B refrigerant for high energy efficiency and lower environmental impact.
• Note: Installation by a professional technician is recommended.

Highlights:

• Fast cooling and heating for 3 independent zones.
• 7 operating modes and 8 fan speeds to suit your comfort needs.
• High energy efficiency with inverter technology and R454B refrigerant.
• Chassis electrical heating promises consistent performance.
• Convenient control via smartphone app, remote, or voice commands.
• Sleep mode for peaceful nights alongside screen off function.
• 24-hour timer for effortless scheduling while saving energy.
• 4D swing ensures even air distribution for added comfort.
• Removable and washable filter for easy cleaning.
• Self-clean function maintains fresher airflow over time.
• Child lock to prevent accidental changes to settings.
• Certified by Energy Star.

Features:

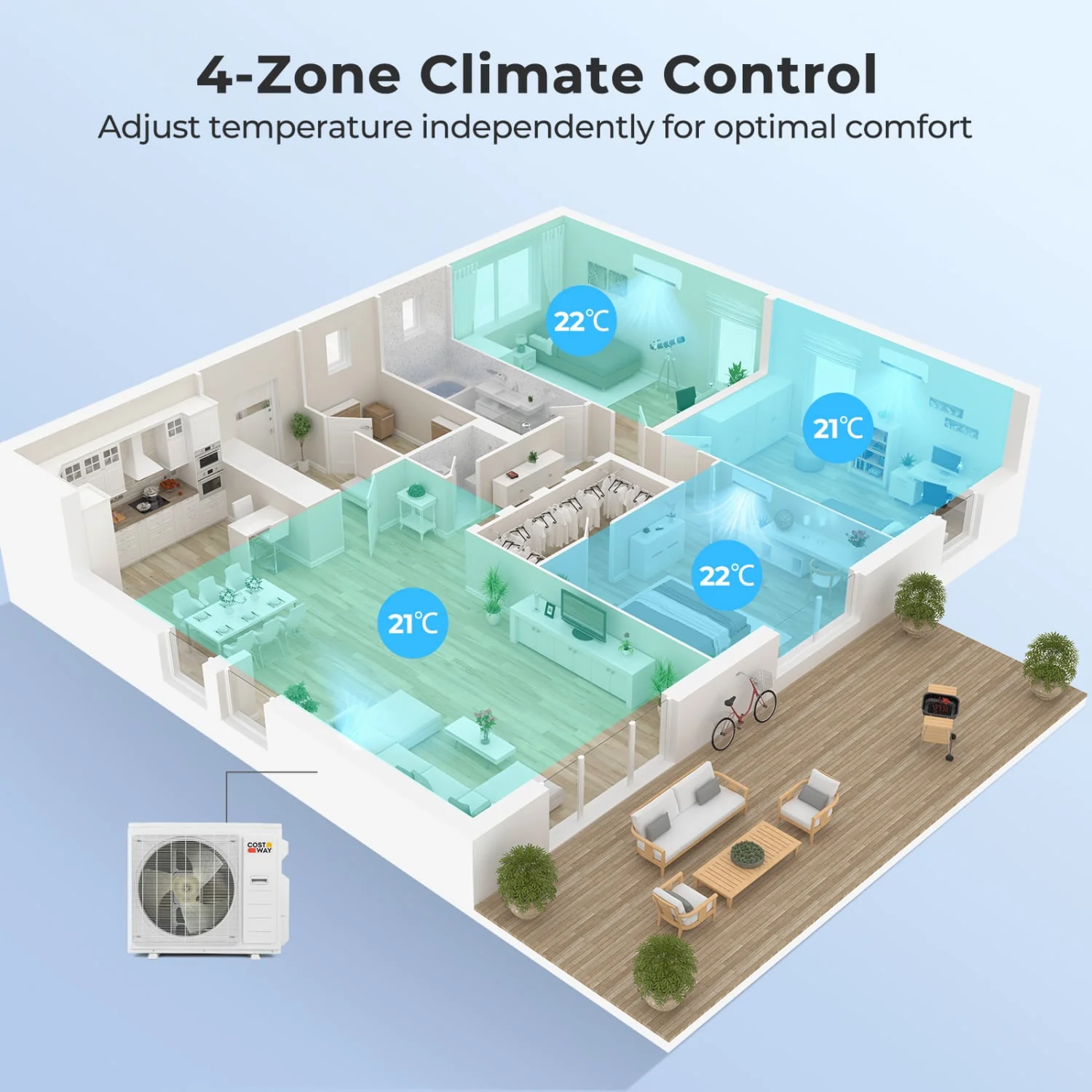

• 4-zone climate control for room-by-room comfort in larger homes.
• Multi-zone design allows independent temperature adjustments.
• 4D auto swing helps distribute airflow more evenly.

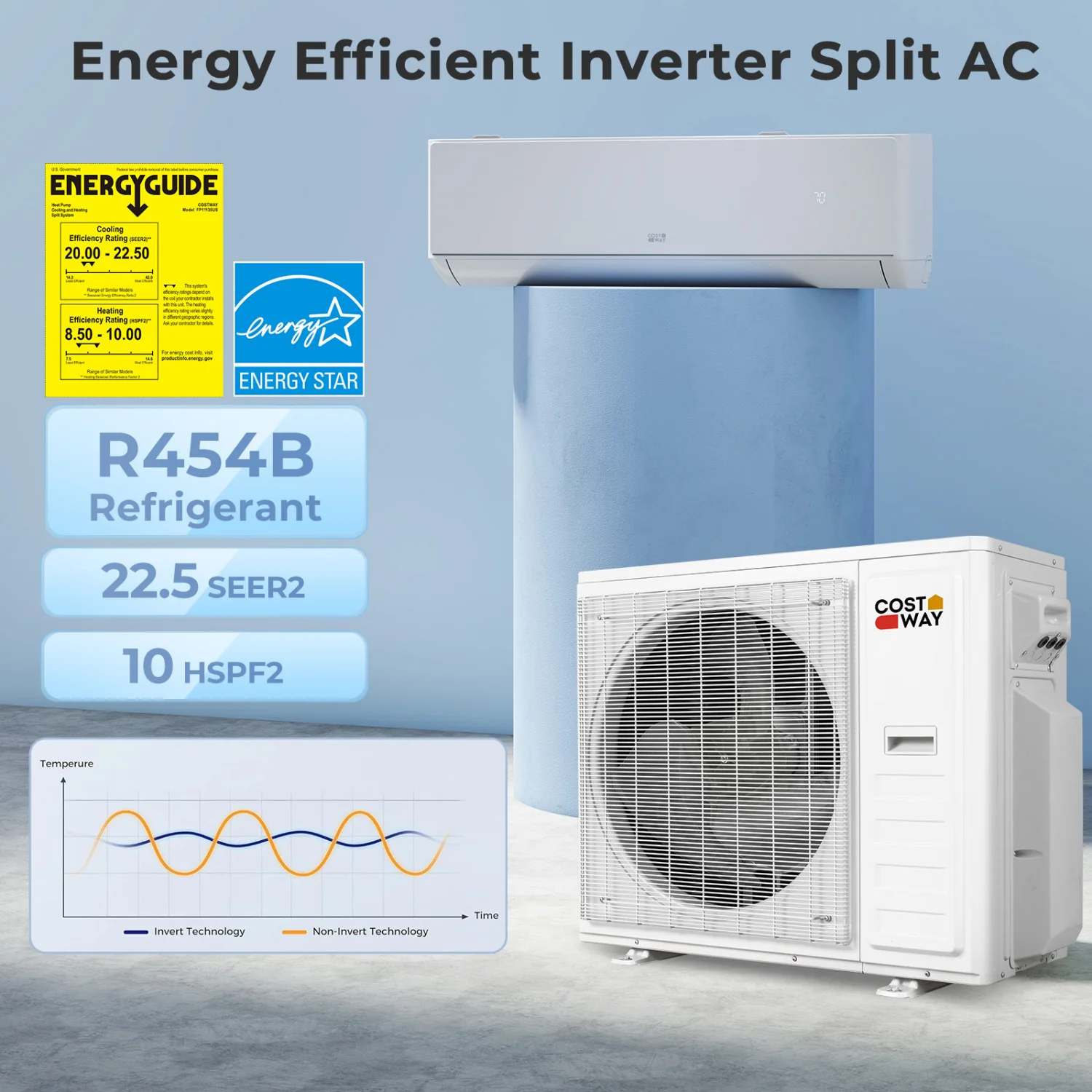

• Rated up to 22.5 SEER2 for energy-efficient performance.
• Uses R454B refrigerant for efficient heating and cooling with lower global warming potential.
• Advanced inverter technology helps minimize energy waste and maintain steady set temperatures.
• WiFi-enabled for smart control.
• Compatible with Alexa and Google Assistant for voice commands.
• Includes a handy remote control for fast adjustments.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer for scheduling.
• Child lock for preventing accidental changes.

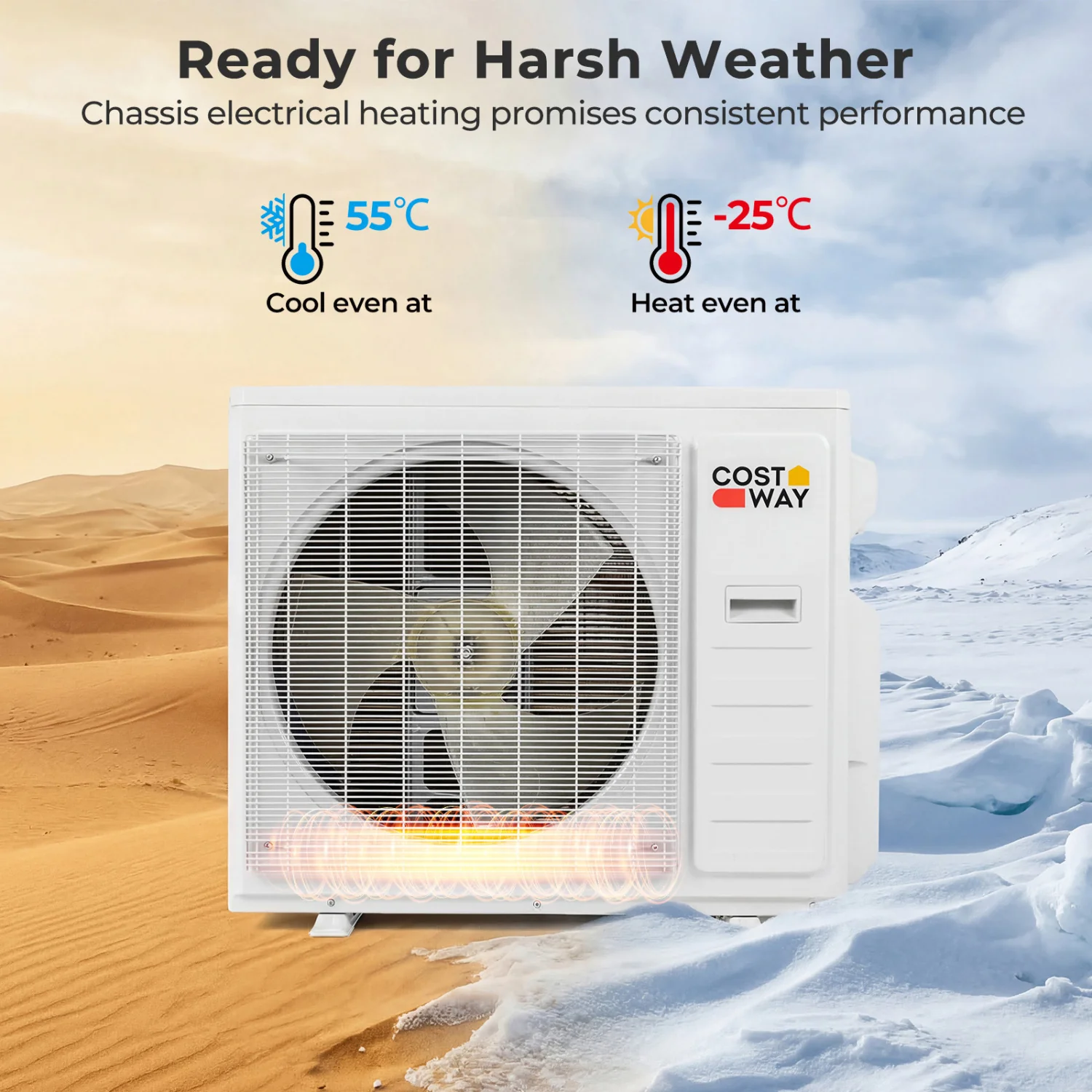

• Equipped with chassis electrical heating system for dependable performance in tough weather.
• Cools in ambient temperatures up to 55℃ and heats down to -25℃.
• Runs with low sound levels as low as 30 dB for quiet operation.
• Self-clean function maintains cleaner air.
• Washable filter allows for easy maintenance.
• Note: Installation by a professional technician is recommended.

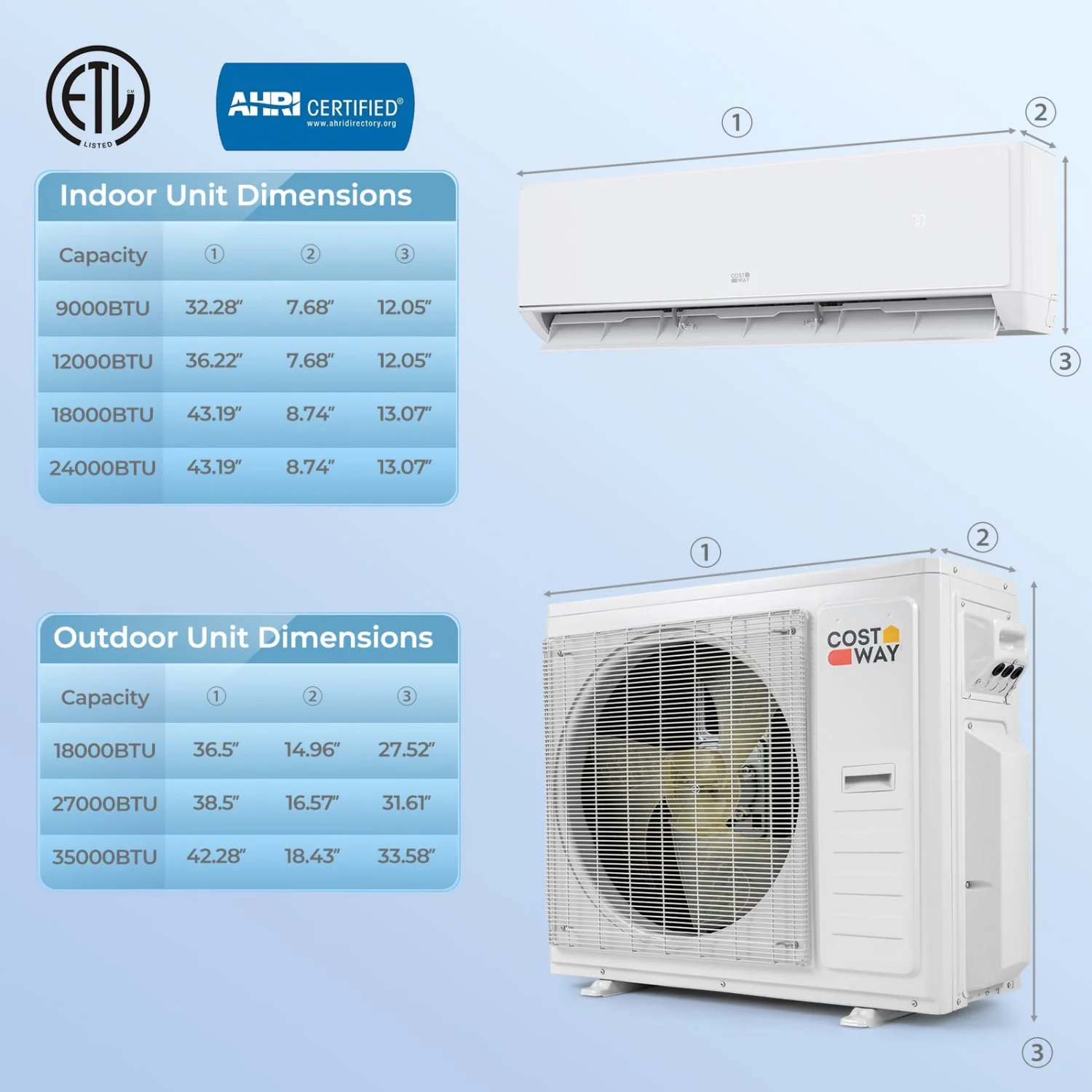

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 20.7 lbs (9.4 kg).
• Net Weight of 12K Indoor Unit: 24.3 lbs (11.0 kg).
• Net Weight of 18K Indoor Unit: 30.9 lbs (14.0 kg).
• Net Weight of 24K Indoor Unit: 30.9 lbs (14.0 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42.0 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54.0 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66.0 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 ft (12.0 m).
• Coverage Area (9K): 450 Sq.Ft (41.8 m²).
• Coverage Area (12K): 750 Sq.Ft (69.7 m²).
• Coverage Area (18K): 1250 Sq.Ft (116.1 m²).
• Coverage Area (24K): 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity (9K): 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity (24K): 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume (9K): 326 CFM/554 m³/h.
• Maximum Air Flow Volume (12K): 500 CFM/554 m³/h.
• Maximum Air Flow Volume (18K): 735 CFM/554 m³/h.
• Maximum Air Flow Volume (24K): 735 CFM/554 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

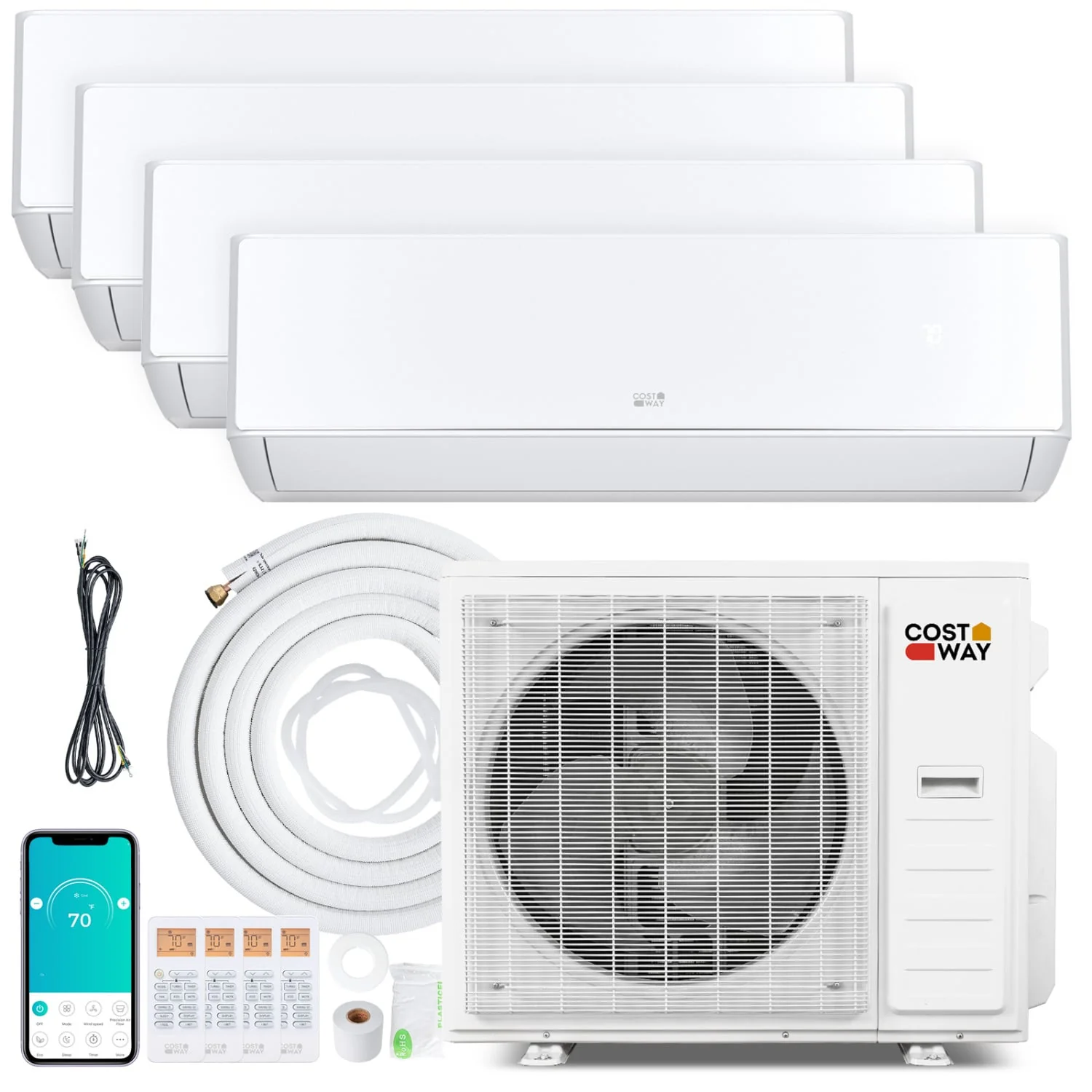

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 3 x Drain Hose.
• 4 x Remote Control & Holder.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 9 x User Guide.

Package Quantity: 1
